The LM2596T-12/LF03 from Texas Instruments is a highly efficient, monolithic integrated circuit voltage regulator designed for ease of use and robustness in various applications. This regulator is part of the LM2596 series, which provides all the active functions necessary for a step-down (buck) switching regulator capable of driving a 3A load with excellent line and load regulation.

Key Features

• Output Voltage: The LM2596T-12/LF03 provides a fixed output voltage of 12V, which is suitable for a wide range of electronics that require a stable 12V supply.
• High Efficiency: With its ability to convert input voltages ranging from 4.5V to 40V, this regulator maintains high efficiency, which can be up to 92%, depending on input and output voltages, thereby reducing the heat generated and saving energy.
• Load Regulation: This device exhibits excellent load regulation characteristics, ensuring a consistent output voltage even with changes in the load current.
• Thermal Shutdown and Current Limit Protection: The LM2596T-12/LF03 includes built-in thermal shutdown and current limit protection features to safeguard the device and the load from excessive temperature and current conditions.
• Adjustable Output: While this model provides a fixed 12V output, the LM2596 series also offers versions with an adjustable output voltage from 1.23V to 37V.

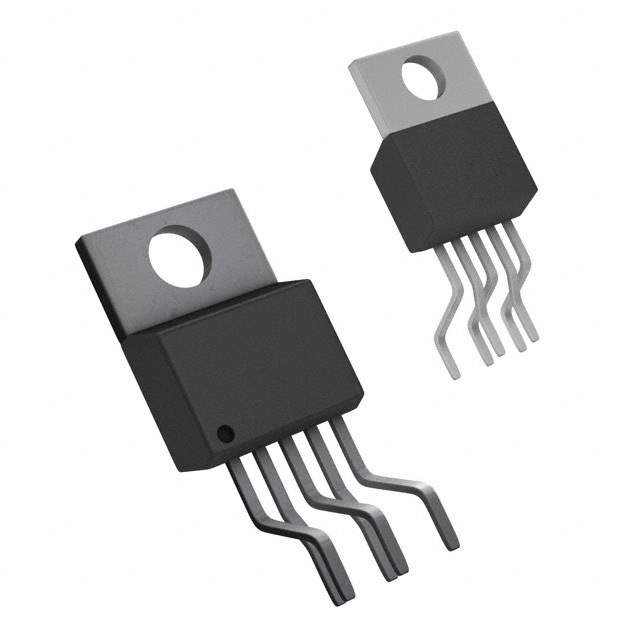

• Package: The regulator is available in a TO-220 package, which is known for its ease of installation and ability to handle higher power levels.

Applications

The LM2596T-12/LF03 is versatile and can be used in a variety of applications, such as:

• Simple high-efficiency step-down (buck) regulators
• Efficient pre-regulators for linear regulators
• On-card switching regulators
• Positive to negative converter (Buck-Boost)

With its robust design and comprehensive feature set, the LM2596T-12/LF03 from Texas Instruments stands out as a reliable and efficient solution for power supply requirements in both commercial and industrial applications.
