The LM2670SD-3.3 from Texas Instruments is a highly efficient, step-down voltage regulator with a fixed 3.3V output. This regulator belongs to the LM2670 series, which is known for its Simple Switcher® design, making it an ideal choice for a wide range of applications requiring a stable and efficient power supply.

Key Features

• Output Voltage: Fixed 3.3V with high precision.
• Output Current: Capable of delivering up to 3A of continuous output current.
• Efficiency: High efficiency up to 92%, which helps in reducing power loss and heat generation.
• Switching Frequency: Adjustable from 260 kHz to 400 kHz, allowing for flexibility in choosing inductor size and efficiency.
• Thermal Shutdown: Enhanced safety with built-in thermal shutdown feature to prevent overheating.

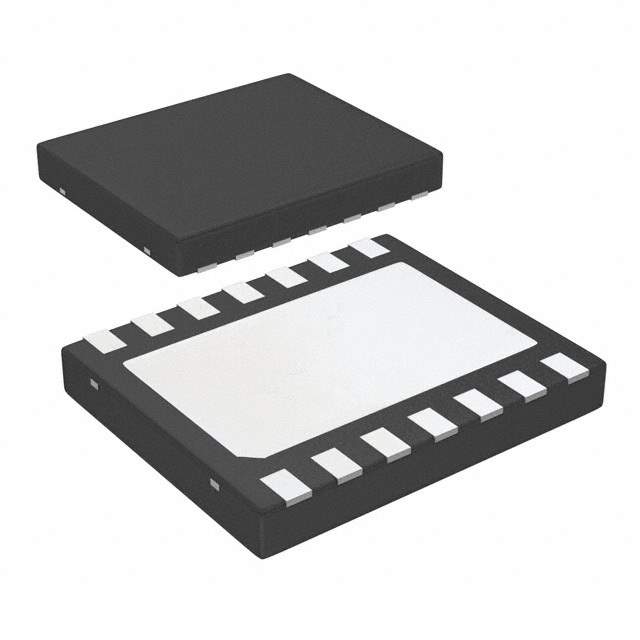

• Package: Available in a compact LLP-14 (Leadless Leadframe Package) for space-sensitive applications.

Applications

The LM2670SD-3.3 is versatile and can be used in various applications such as:

• Efficient power supplies for motherboards and peripheral devices
• Point of load conversions from 5V or 12V rails
• Portable devices requiring battery-powered solutions
• Networking and telecommunication equipment
• Industrial control systems

Design Advantages

The LM2670SD-3.3 incorporates a range of features designed to simplify its implementation and enhance its performance:

• Simple Switcher® Technology: Minimizes the design complexity and reduces external component count.
• Internal Compensation: Eliminates the need for external compensation components.
• Stability: Stable with low ESR output capacitors, including ceramic capacitors.
• Protection Features: Offers current limit and overvoltage protection for increased reliability.

With its robust design and easy-to-use features, the LM2670SD-3.3 is a reliable and efficient solution for any application requiring a fixed 3.3V regulated output with significant current capabilities.
