The LM2675LD-5.0 from Texas Instruments is a highly efficient, step-down voltage regulator designed to deliver a fixed output voltage of 5V. This SIMPLE SWITCHER® regulator is capable of driving a 1A load with excellent line and load regulation. The integration of a high-efficiency switch allows for reduced power losses and thus, improved overall efficiency.

Key Features

• Output Voltage: Fixed 5V output with high accuracy.
• Output Current: Capable of delivering up to 1A of continuous current.
• Efficiency: Integrated switch with high efficiency, minimizing heat generation.
• Frequency: 260 kHz fixed frequency internal oscillator.
• Thermal Shutdown: In-built thermal shutdown and current limit protection features.

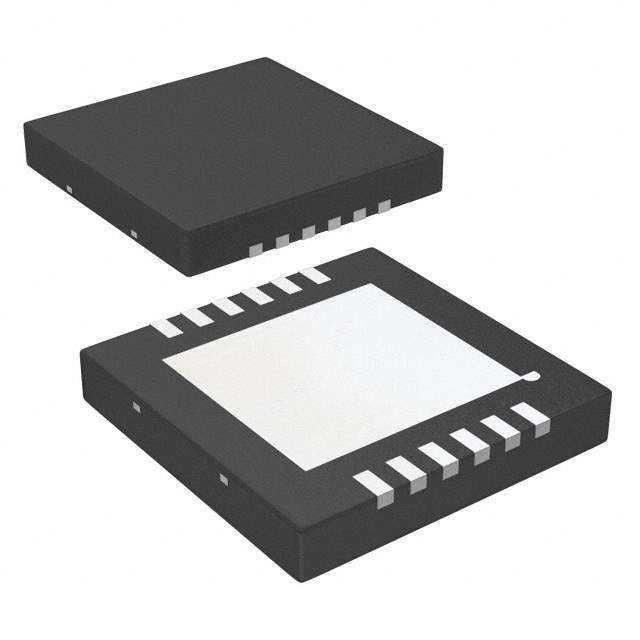

• Package: Available in a low-profile, surface-mount package.

Applications

The LM2675LD-5.0 is suitable for a wide range of applications, including but not limited to:

• Efficient pre-regulator for linear regulators
• On-card switching regulators
• Positive to negative converter (Buck-Boost)

Advantages

The LM2675LD-5.0 offers several advantages for designers looking for a compact power management solution:

• Its high-efficiency design means less heat is generated, making it ideal for thermally sensitive applications.
• The simplicity of design allows for easy implementation with minimal external components, reducing overall system cost and complexity.
• Its robust protection features ensure long-term reliability and safety for the end application.

Quality and Reliability

Texas Instruments is renowned for its commitment to quality and reliability. The LM2675LD-5.0 is built to meet the stringent requirements of industrial and commercial applications, ensuring consistent performance and durability.
