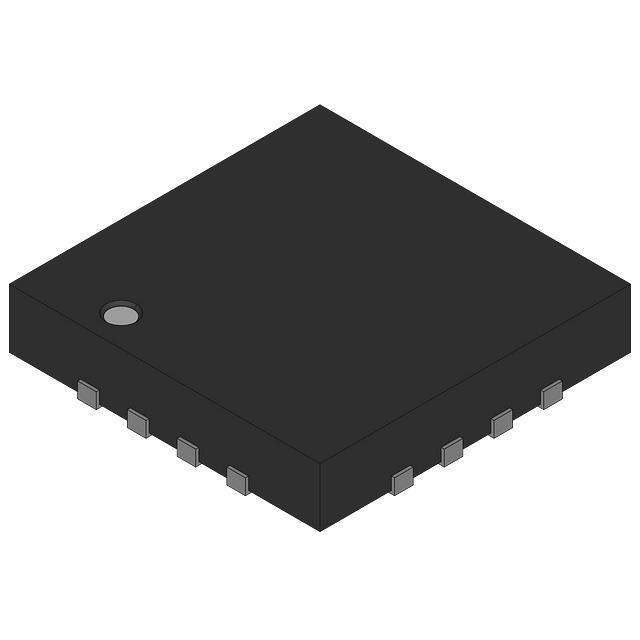

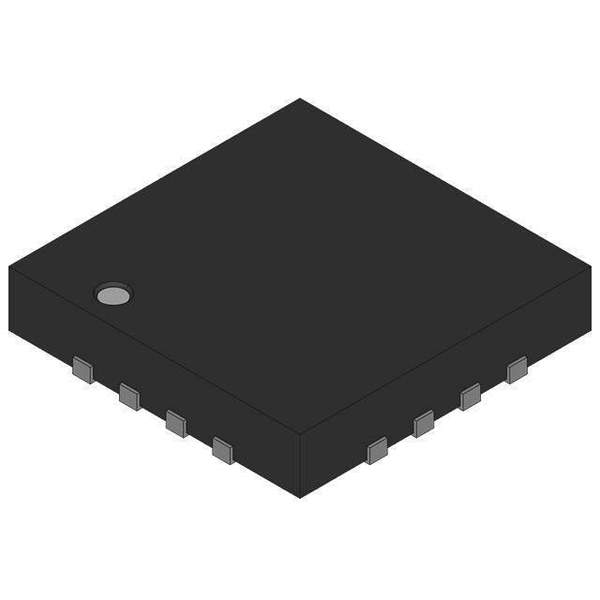

Product Overview: LM2675LD-ADJ/NOPB

The LM2675LD-ADJ/NOPB is a high-performance, easy-to-use, adjustable output, step-down DC-DC switching regulator from Texas Instruments. It is part of the LM2675 series, which is known for its efficiency and reliability in a variety of applications. This versatile component is designed to deliver up to 1A of load current with an input voltage range of 8V to 40V.

Key Features

• Adjustable Output Voltage: The output voltage of the LM2675LD-ADJ/NOPB is adjustable, which allows for a wide range of output voltages to be set according to the needs of the application. This is achieved by using a pair of external resistors to set the desired voltage level.
• High Efficiency: With an efficiency of up to 92%, this regulator ensures minimal heat generation and conserves energy, making it suitable for battery-powered and energy-sensitive applications.
• Simple External Components: The device requires only a few external components for operation, reducing the complexity and size of the power supply design. This includes a standard series of inductors and capacitors for optimal performance.
• Low Dropout Operation: The LM2675LD-ADJ/NOPB is capable of low dropout performance, which maintains regulation even when the input voltage is close to the output voltage, enhancing the efficiency in battery-operated systems.
• Thermal Shutdown and Current Limit Protection: Built-in thermal shutdown and current limit protection features safeguard the device and the system from damage due to excessive heat and over-current conditions.
• Surface-Mount Package: The NOPB (No Pb) indicates that the device is provided in a lead-free package, which is environmentally friendly and suitable for RoHS-compliant applications. Its surface-mount package allows for efficient use of PCB space.

Applications

The LM2675LD-ADJ/NOPB is a versatile component that can be used in a wide range of applications, including:

• Portable Devices
• Embedded Systems
• Telecommunications Equipment
• Power Supply Modules
• Automotive Accessories

With its adjustable output, high efficiency, and robust protection features, the LM2675LD-ADJ/NOPB from Texas Instruments is an excellent choice for designers looking to create compact, efficient, and reliable power management solutions.
