Product Overview: LM3560TLX/NOPB

The LM3560TLX/NOPB is a high-performance integrated flash LED driver designed and manufactured by Texas Instruments. This advanced lighting solution is specifically engineered to cater to the demanding requirements of portable electronics such as smartphones, digital cameras, and other devices that require a high-brightness flash for photography and videography.

Key Features

• Input Voltage Range: The device operates on a wide input voltage range, making it compatible with various battery technologies.
• Output Power: It provides a high-current drive capability, ensuring sufficient power to drive the latest high-brightness LEDs.
• Efficiency: The driver is designed for high efficiency, which is essential for battery-operated devices, as it helps to maximize battery life.
• Programmable Settings: Users can program the flash current, torch current, and safety timers via an I2C-compatible interface, offering flexibility and customization for different applications.

Technical Specifications

• Output Voltage: It supports an adjustable output voltage range to accommodate various LED configurations.
• Thermal Management: Integrated thermal management features protect the device and the LEDs from overheating.
• Protection Features: The LM3560TLX/NOPB includes over-voltage, over-temperature, and LED short-circuit protection mechanisms.

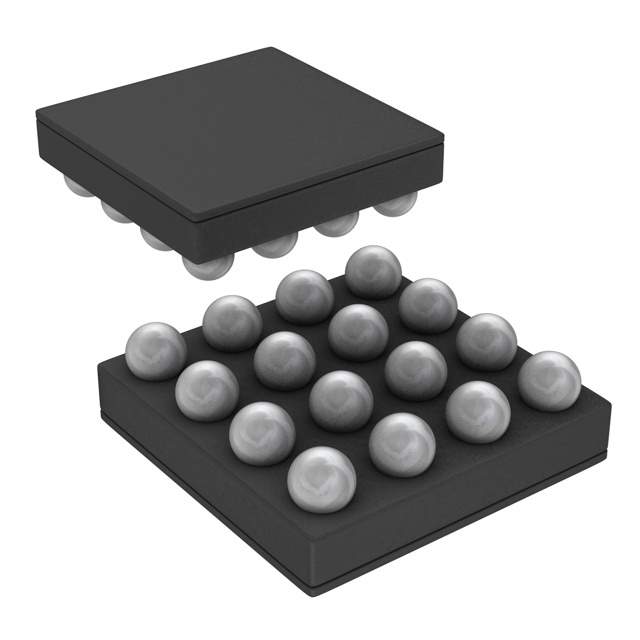

• Package: It comes in a compact, lead-free NanoFree™ package, which is ideal for space-constrained applications.

Applications

The versatility of the LM3560TLX/NOPB makes it suitable for a wide range of applications. It is the perfect choice for portable devices that require a controlled, high-intensity flash. Its programmability and protection features ensure reliable performance in various environments and use cases.

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the LM3560TLX/NOPB is no exception. This product complies with the industry's stringent standards, ensuring both reliability and performance for the end-user.

For more detailed information, datasheets, and support resources, visit the Texas Instruments website.
