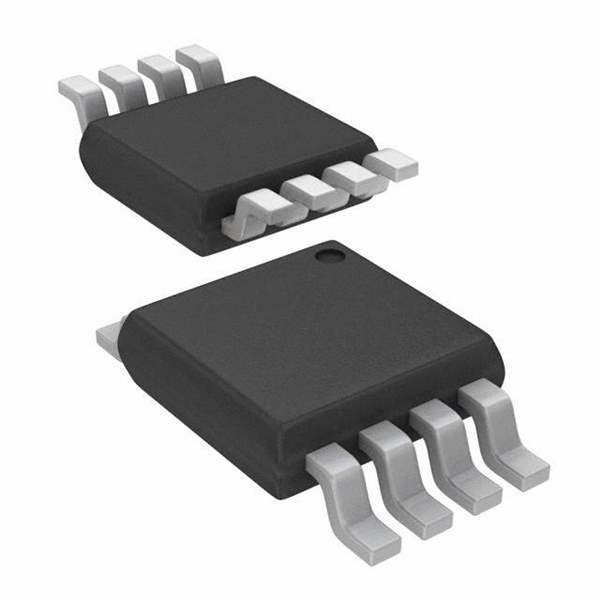

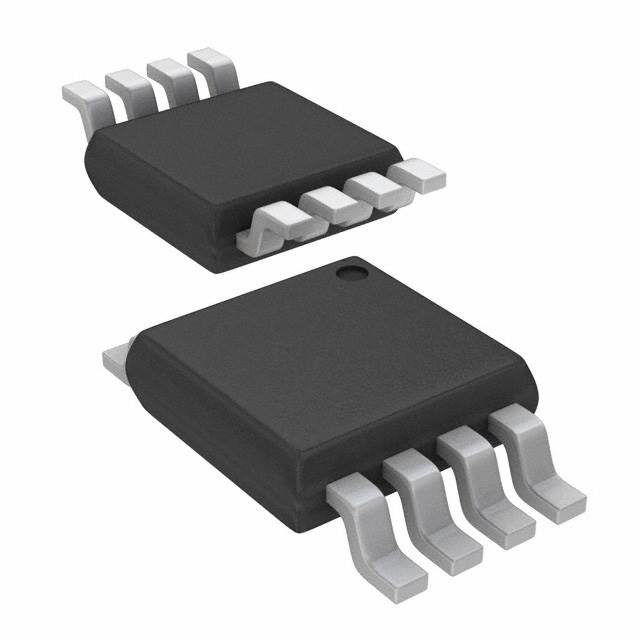

Product Overview: LM392DGKTG4 from Texas Instruments

The LM392DGKTG4 is a versatile integrated circuit that combines two essential components in one package: an operational amplifier (op-amp) and a voltage comparator. This combination allows for a wide range of applications in electronic circuits, including sensor interfacing, voltage level detection, and analog signal amplification. Manufactured by Texas Instruments, a leader in the semiconductor industry, the LM392DGKTG4 is designed to offer reliability and performance in a compact form factor.

Key Features

• Operational Amplifier: The op-amp component of the LM392DGKTG4 offers a high-gain, internally frequency-compensated design that can be used in various configurations, such as a voltage follower, an integrator, or an active filter.
• Voltage Comparator: The voltage comparator can be utilized for comparing two voltages and outputting a digital signal based on the comparison. It is ideal for threshold detection or triggering events when a certain voltage level is reached.
• Low Power Consumption: Designed with power efficiency in mind, the LM392DGKTG4 operates with a low supply current, making it suitable for battery-powered devices and energy-sensitive applications.
• Wide Supply Voltage Range: The device can be powered by a wide range of supply voltages, from 3V to 32V for the op-amp and 2V to 36V for the comparator, providing flexibility in various system designs.
• Single or Dual Supply Operation: It can operate from a single power supply or dual supplies, allowing it to easily integrate into different circuit topologies.
• Package: The LM392DGKTG4 is available in an 8-pin VSSOP package, which is suitable for space-constrained applications.

Applications

The LM392DGKTG4 is utilized in a broad array of applications including, but not limited to:

• Signal conditioning in data acquisition systems
• Level shifting or voltage level detection circuits
• Battery chargers and power management systems
• Analog-to-digital converter (ADC) drivers
• Control systems and feedback loops

With its dual functionality and Texas Instruments' reputation for quality, the LM392DGKTG4 is a solid choice for designers looking to streamline their circuit designs with a reliable and versatile component.
