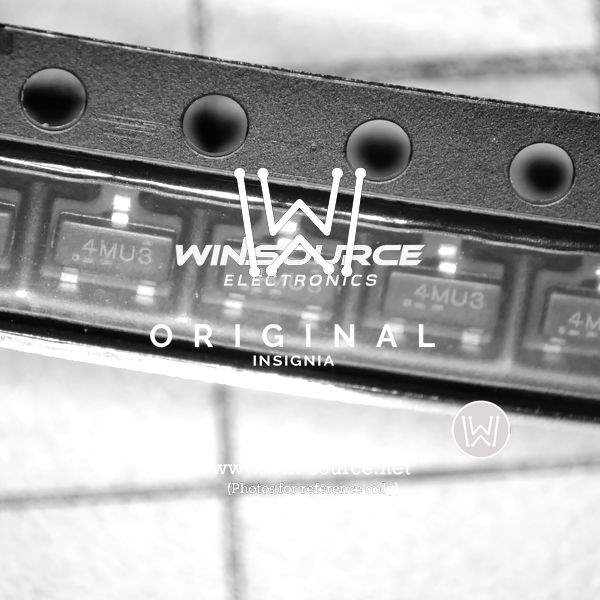

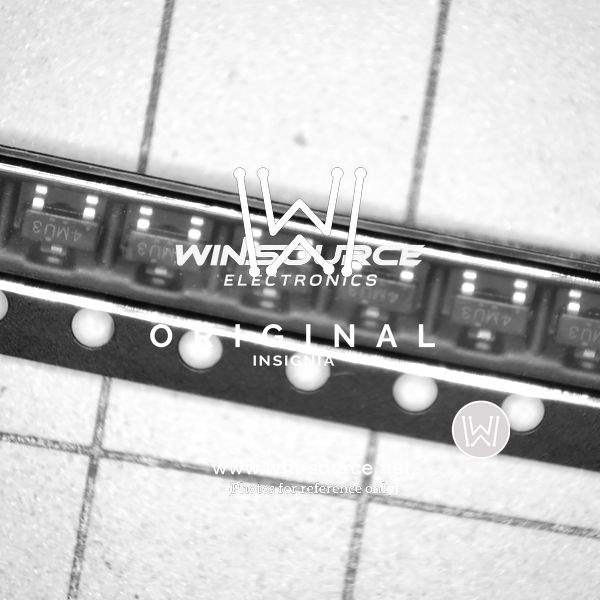

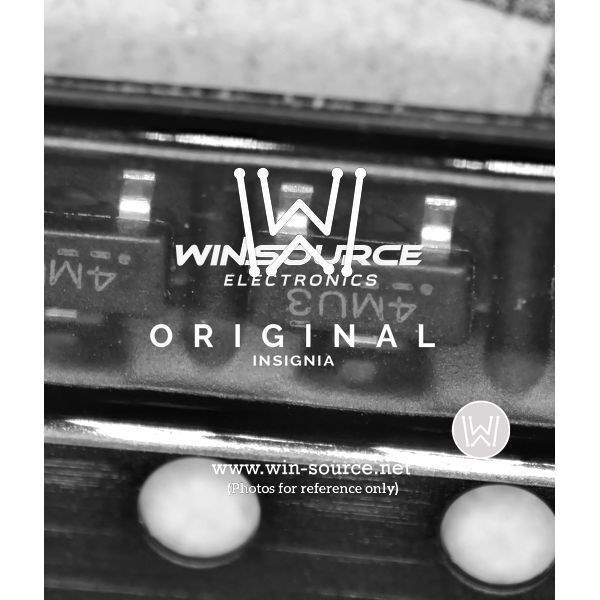

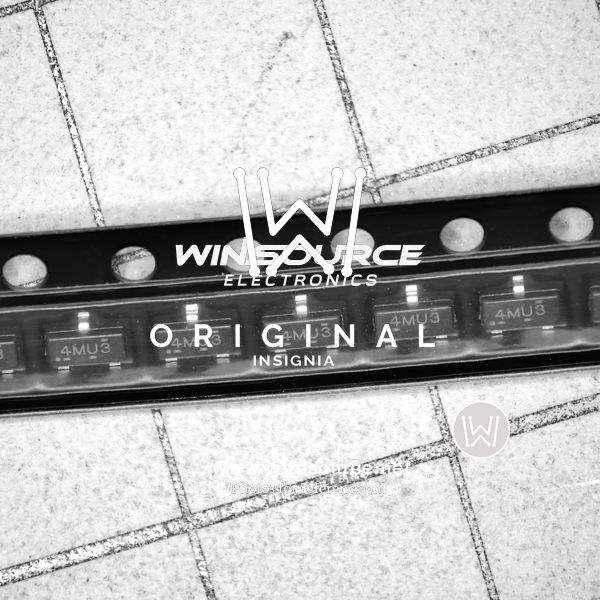

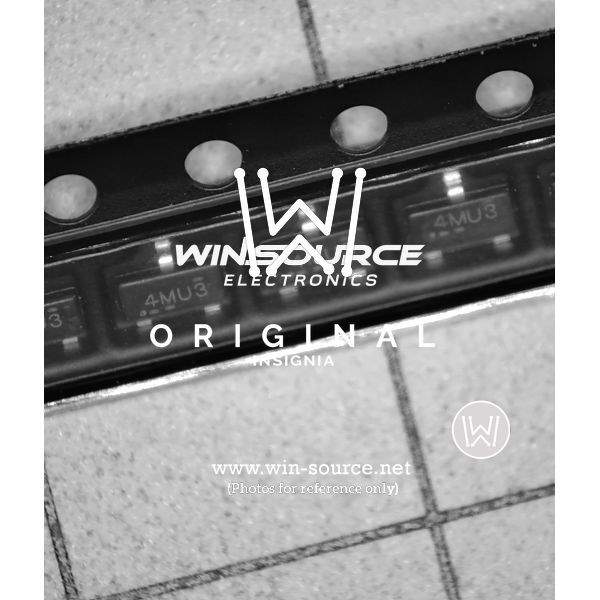

LM4040C25IDBZR Real Image LM4040C25IDBZR real image1529 LM4040C25IDBZR real image1530 LM4040C25IDBZR Real Image1 LM4040C25IDBZR Real Image2 LM4040C25IDBZR Real Image3
Same model may have multiple batches, images only for reference.
LM4040C25IDBZR Real Image LM4040C25IDBZR real image1529 LM4040C25IDBZR real image1530 LM4040C25IDBZR Real Image1 LM4040C25IDBZR Real Image2 LM4040C25IDBZR Real Image3
LM4040C25IDBZR Real Image LM4040C25IDBZR real image1529 LM4040C25IDBZR real image1530 LM4040C25IDBZR Real Image1 LM4040C25IDBZR Real Image2 LM4040C25IDBZR Real Image3
Same model may have multiple batches, images only for reference.

LM4040C25IDBZR

Part No LM4040C25IDBZR
Manufacturer Texas Instruments
Catalog PMIC - Voltage Reference
Description V-Ref Precision 2.5V 15mA Automotive 3-Pin SOT-23 T/R / IC VREF SHUNT 2.5V SOT23-3
Datasheet
LM4040C25IDBZR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Reference Type Shunt
Output Type Fixed
Nominal Output Voltage (Min/Fixed) 2.5V
Output Current 15mA
Tolerance ±0.5%
Temperature Coefficient 100ppm/°C
Noise - 10Hz to 10kHz 35μVrms
Current - Cathode 80μA
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package SOT-23-3
Win Source Part Number 019259-LM4040C25IDBZR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name LM4040
Introduction Date November 01, 2009
ECCN EAR99
Country of Origin China, Thailand
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian LM4040C25IDBZR CAD Model

Description

The Texas Instruments LM4040C25IDBZR is a highly advanced, precision shunt voltage reference that caters to a wide array of applications.

  • Fixed Voltage Reference: 2.5V
  • High Output Current: 15mA
  • Operating Temperature Range: -40 to 85 degrees Celsius
  • Initial Accuracy: 0.1%
  • Temperature Coefficient: only 50ppm/°C
