Same model may have multiple batches, images only for reference.

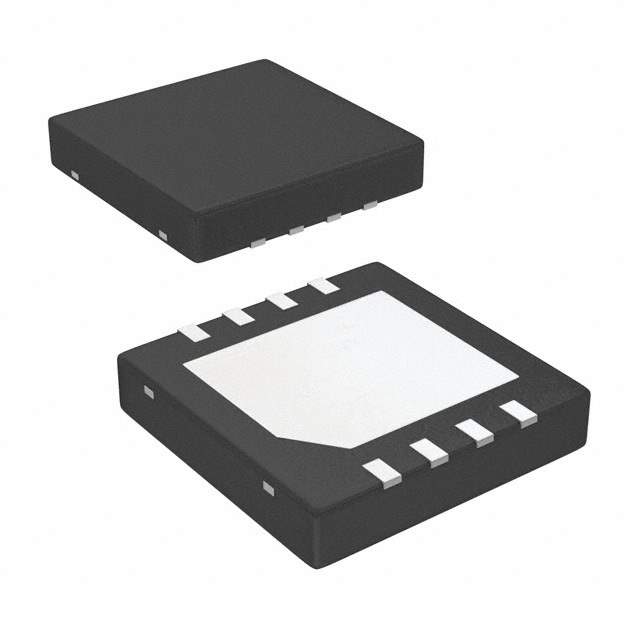

LM5109ASD/NOPB Real Image
Same model may have multiple batches, images only for reference.

LM5109ASD/NOPB

Part No LM5109ASD/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Gate Drivers
Description IC DVR HALF-BRIDGE 100V 1A 8WSON
Datasheet
LM5109ASD/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Driven Configuration Half-Bridge
Channel Type Independent
Number of Drivers 2
Gate Type N-Channel MOSFET
Supply Voltage - Operating 8 V to 14 V
Logic Voltage - VIL, VIH 0.8V, 2.2V
Current - Peak Output (Source, Sink) 1A, 1A
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 108V
Rise and Fall Time 15ns, 15ns
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 8-WSON (4x4)
Win Source Part Number 136628-LM5109ASD/NOPB
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LM5109ASD/NOPB CAD Model

Description

The LM5109ASD/NOPB is an advanced, high-voltage, half-bridge gate driver manufactured by Texas Instruments.

  • High-Side Driver Voltage: Up to 100V
  • Low-Side Gate Driver Voltage: Up to 14V
  • Input Voltage Range: 8V to 14V
  • Peak Current Drive: Up to 1.4A
  • Switching Frequency: Up to 1MHz
  • Package: 8-pin SOIC
  • Operating Temperature Range: -40°C to +125°C
