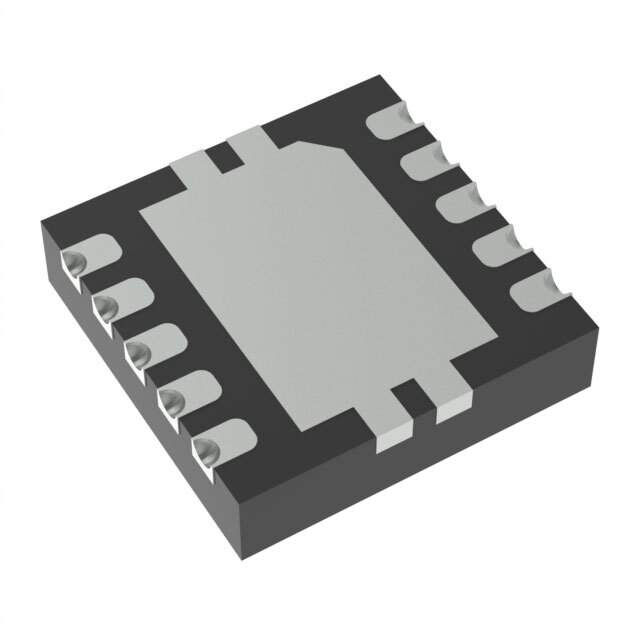

LM536003QDSXTQ1

Part No LM536003QDSXTQ1
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description IC REG BUCK 3.3V 0.65A
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Purpose Step-Down
Topology Buck
Output Type Fixed
Number of Outputs 1
Minimum Input Voltage 3.8V
Maximum Input Voltage 36V
Nominal Output Voltage (Min/Fixed) 3.3V
Output Current 650mA
Frequency - Switching 2.1MHz
Synchronous Rectifier Yes
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 10-WSON (3x3)
Win Source Part Number 1054888-LM536003QDSXTQ1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM536003QDSXTQ1 CAD Model

Description

The LM536003QDSXTQ1 is a highly efficient, automotive-grade, synchronous step-down voltage converter, designed by Texas Instruments to meet the rigorous demands of automotive power supply applications. This robust power management IC is capable of delivering a continuous 3.5A output current to loads with input voltage ranging from 3.5V to 36V, making it an ideal solution for systems with varying supply voltages including automotive battery fluctuations.

With its wide input voltage range, the LM536003QDSXTQ1 ensures consistent performance through cold-crank and stop-start scenarios, which are common in automotive environments. This feature, combined with a low quiescent current, enhances battery life, a critical factor in vehicle applications. The device operates at a fixed frequency and offers a frequency synchronization pin to synchronize multiple devices or to reduce the radiated electromagnetic interference (EMI) in sensitive applications.

The LM536003QDSXTQ1 integrates a comprehensive set of protection features to ensure reliability under fault conditions. These include cycle-by-cycle current limit, thermal shutdown, and under-voltage lockout. The thermal shutdown feature protects the device in extreme temperature conditions, while the under-voltage lockout ensures the device operates only when the input voltage is within its specified range.

This converter is designed with ease-of-use in mind, requiring minimal external components to simplify design and reduce overall solution size. The LM536003QDSXTQ1 is available in a compact, thermally enhanced 10-pin VSON package, which is optimized for space-constrained automotive applications. The device is AEC-Q100 qualified, supporting its use in automotive applications such as infotainment systems, advanced driver assistance systems (ADAS), and other power-sensitive modules requiring a reliable and efficient power supply solution.

Overall, the LM536003QDSXTQ1 from Texas Instruments is a versatile, efficient, and reliable choice for automotive power management, providing a high-quality power solution that engineers can trust for their critical vehicle systems.
