The LM5575QMH is a highly efficient, versatile switching regulator from Texas Instruments, designed to meet the rigorous demands of modern electronic devices. This advanced power management IC is part of TI's LM5575 series and is specifically engineered to provide a reliable and stable voltage supply in a wide range of applications.

Key Features

• Wide Input Voltage Range: The LM5575QMH operates with an input voltage range from 6V to 75V, making it suitable for handling fluctuating power supplies and accommodating various application needs.
• Adjustable Output Voltage: It offers an adjustable output voltage that can be set from 1.225V to 75V, ensuring compatibility with a broad spectrum of devices and systems.
• High Efficiency: The switching regulator is designed for high efficiency, with an integrated 0.5 Ohm N-Channel MOSFET that supports up to 1.5A of continuous load current.
• Thermal Protection: It incorporates thermal shutdown and current limit protection, safeguarding the device and the system from potential damage due to overheating or excessive current.
• Frequency Synchronization: The LM5575QMH allows for frequency synchronization to an external clock, which can help to minimize electromagnetic interference (EMI) in sensitive applications.

Applications

The LM5575QMH is ideal for a variety of applications, including but not limited to:

• Telecommunication and Networking Equipment
• Automotive Electronics
• Industrial Control Systems
• Power Conditioning for Renewable Energy Systems

Reliability and Performance

With its military-grade operating temperature range of -40°C to +125°C, the LM5575QMH is built to perform reliably in harsh environments. Its robust design and comprehensive protection features make it a preferred choice for engineers who need a dependable power solution.

Package and Availability

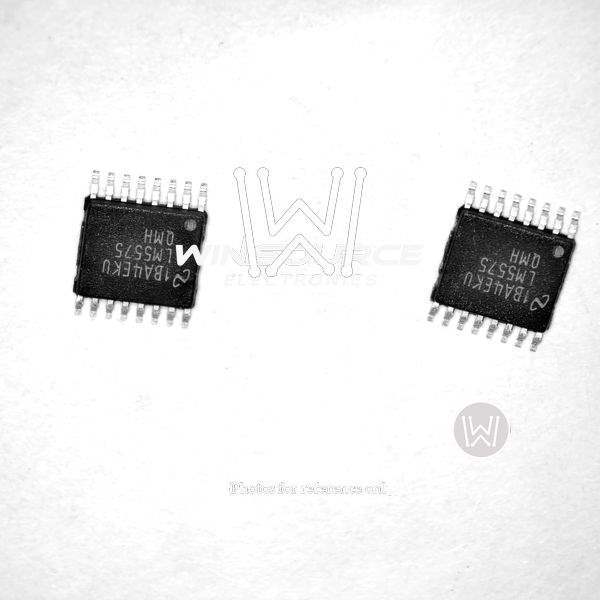

The LM5575QMH is available in a thermally enhanced, leaded HTSSOP-20 PowerPAD™ package, ensuring efficient heat dissipation and ease of integration into various designs. This product is available through Texas Instruments and authorized distributors, providing designers with flexibility and convenience in sourcing components.
