Product Overview: LM63625DQPWPRQ1 from Texas Instruments

The LM63625DQPWPRQ1 is a highly efficient, automotive-grade, synchronous step-down voltage converter designed and manufactured by Texas Instruments. This robust power management IC is tailored for applications requiring a high-performance, low-voltage power supply within the automotive industry. It operates over a wide input voltage range and is capable of delivering up to 2.5A of continuous output current.

Key Features

• Wide Input Voltage Range: The LM63625DQPWPRQ1 is designed to accommodate a broad input voltage range from 3.8V to 36V, making it suitable for a variety of automotive battery configurations and ensuring reliable operation through voltage fluctuations.
• High-Efficiency Operation: With its advanced synchronous step-down regulator topology, it achieves high efficiency at various load conditions, which helps in minimizing power loss and heat generation.
• Peak Current Mode Control: This feature provides fast transient response and eases loop stabilization, ensuring consistent performance under dynamic load conditions.
• Thermal Shutdown and Overcurrent Protection: The device includes built-in protection features that safeguard the IC and the system from thermal overload and overcurrent conditions.
• Adjustable Switching Frequency: The switching frequency can be programmed from 400 kHz to 2.2 MHz or synchronized to an external clock, allowing for flexibility in component selection and optimization of the size and efficiency of the power supply design.
• Automotive-Qualified: As part of the Q1 series, this device meets the stringent quality and reliability standards required for automotive applications, including AEC-Q100 qualification.

Applications

The LM63625DQPWPRQ1 is ideal for a range of automotive applications, including infotainment systems, advanced driver assistance systems (ADAS), and other electronic modules that require a stable and efficient power supply. Its compact size and high level of integration make it particularly suitable for space-constrained environments.

Package and Availability

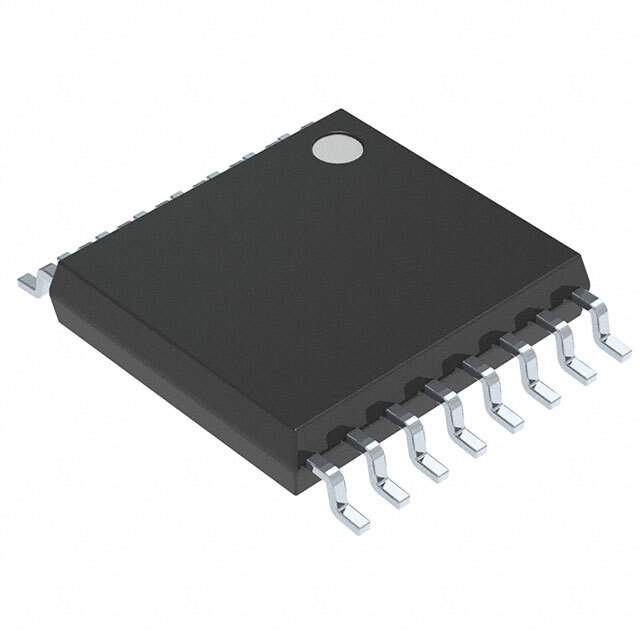

This voltage converter is available in a thermally enhanced HTSSOP package that contributes to its high thermal performance and reliability. For detailed specifications, application notes, and ordering information, please refer to the official Texas Instruments website or contact an authorized distributor.
