The LM76003QRNPTQ1 is a robust, automotive-grade step-down voltage converter designed by Texas Instruments to meet the stringent requirements of the automotive industry. This high-performance switching regulator is capable of driving a 3.5A load with exceptional efficiency, reliability, and thermal performance.

Key Features

• Wide Input Voltage Range: The device operates from an input voltage range of 3.5V to 60V, making it suitable for a variety of automotive applications, including those that involve transient conditions.
• High Efficiency: With an integrated 65V half-bridge MOSFET, the LM76003QRNPTQ1 achieves high efficiency, which is critical for managing power in automotive environments.
• Adjustable Switching Frequency: The switching frequency can be programmed between 200 kHz to 2.2 MHz or synchronized to an external clock, providing design flexibility and optimizing performance.
• Thermal Regulation: The device includes thermal shutdown and thermal foldback to protect against overheating, ensuring reliable operation under a range of temperature conditions.

Applications

The LM76003QRNPTQ1 is ideal for a wide range of automotive applications, including infotainment systems, advanced driver assistance systems (ADAS), and powertrain controls. Its robust design also makes it suitable for powering complex automotive sensors and microcontrollers.

Quality and Reliability

This product is AEC-Q100 qualified, which is a critical standard for automotive electronic components, ensuring that it meets the highest quality and reliability standards required for operation in harsh automotive environments. Texas Instruments' commitment to quality ensures that the LM76003QRNPTQ1 provides consistent performance over the product's lifespan.

Package and Availability

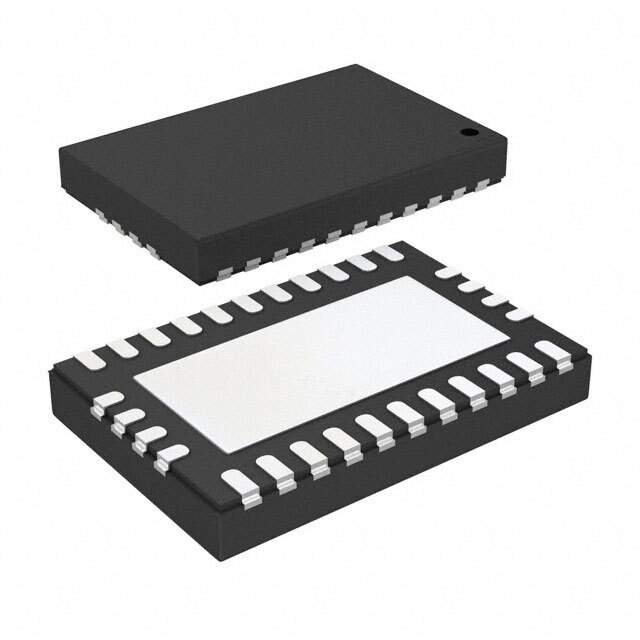

The LM76003QRNPTQ1 is offered in a 4.4 mm x 6 mm VQFN (RNP) package, which is designed to occupy minimal space on a printed circuit board while still providing excellent thermal performance. This product is available for purchase through Texas Instruments and authorized distributors.

For detailed technical specifications, application notes, and support resources, please visit the Texas Instruments website or contact their support team directly.
