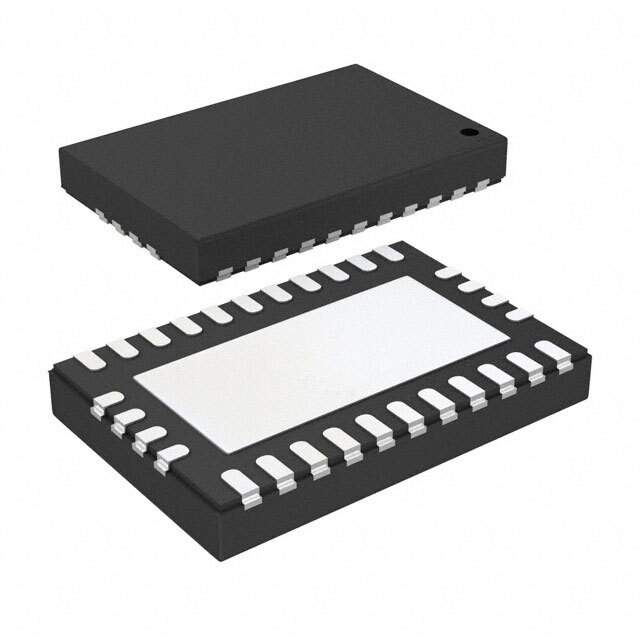

The LM76003RNPT is a high-performance, step-down voltage converter from the reputable manufacturer Texas Instruments. This advanced power solution is designed to meet the needs of a broad range of applications, offering both versatility and reliability for designers looking to optimize their power management systems.

Key Features

• Wide Input Voltage Range: The LM76003RNPT operates with an input voltage range of 3.5V to 60V, making it suitable for a variety of industrial, automotive, and telecommunication power supply applications.
• Adjustable Output Voltage: This converter supports an adjustable output voltage that can be set from 0.8V to Vin, allowing for high flexibility in system design.
• High Efficiency: With an efficiency rating that can reach up to 95%, this device ensures minimal power loss during voltage conversion, leading to energy savings and reduced heat generation.
• Integrated MOSFET: The inclusion of an internal high-side N-channel MOSFET simplifies the design and reduces external component count, which can lead to cost savings and a smaller PCB footprint.
• Thermal Performance: The LM76003RNPT is designed with thermal shutdown and overcurrent protection, ensuring reliable operation under varying conditions.

Applications

The versatile nature of the LM76003RNPT makes it an excellent choice for a wide array of applications, including:

• Aftermarket automotive supplies
• Industrial power systems
• Telecommunications equipment
• Networking equipment
• Portable devices and battery-powered electronics

Quality and Reliability

Texas Instruments is known for its commitment to quality and the LM76003RNPT is no exception. It is built to meet high standards of performance and reliability, ensuring that it can withstand the rigors of demanding applications. Additionally, the device is RoHS compliant and designed to meet environmental standards, making it a responsible choice for eco-conscious businesses.

Ordering Information

The LM76003RNPT comes in a non-standard (NSOIC) package and is available in tape and reel form for automated assembly processes. For detailed product specifications, application notes, and ordering information, customers are encouraged to visit the Texas Instruments website or contact their sales representatives.
