The LMC660CM by Texas Instruments is a state-of-the-art CMOS quad operational amplifier designed for a wide range of applications. This op-amp is known for its low power consumption and high input impedance, making it an excellent choice for battery-powered devices and sensor interfaces.

Key Features:

• Low Input Bias Current: The LMC660CM features an incredibly low input bias current, typically 20 fA, which is ideal for precision applications requiring minimal input offset.
• High Voltage Gain: With a high voltage gain of 101 dB, this operational amplifier ensures a robust output signal, enhancing the performance of your electronic circuits.
• Wide Supply Voltage Range: Operating from a supply voltage range of +5V to +15V, the LMC660CM provides flexibility in various circuit designs and applications.
• Low Power Consumption: It consumes a mere 1 mW per amplifier at +5V, making it an energy-efficient choice for portable electronics.
• Rail-to-Rail Output Swing: The output can swing 0.1V from the supply rails, ensuring maximum dynamic range which is particularly useful in low voltage operations.

Applications:

• Portable Instrumentation
• Medical Equipment
• Sensor Interface Circuits
• Analog Filters
• Data Acquisition Systems

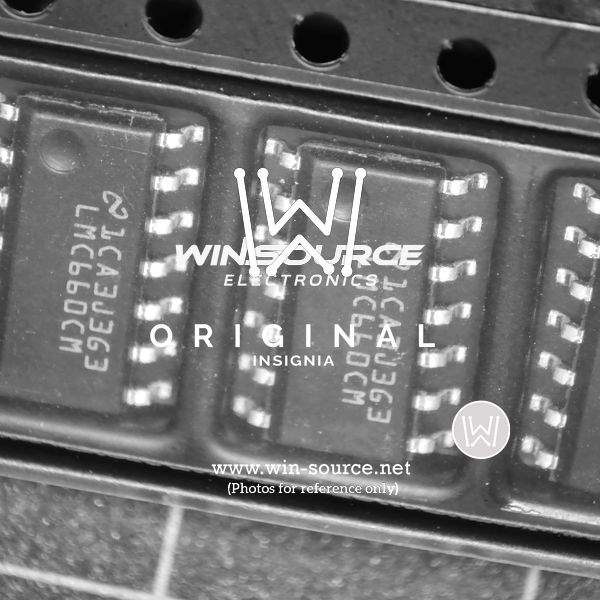

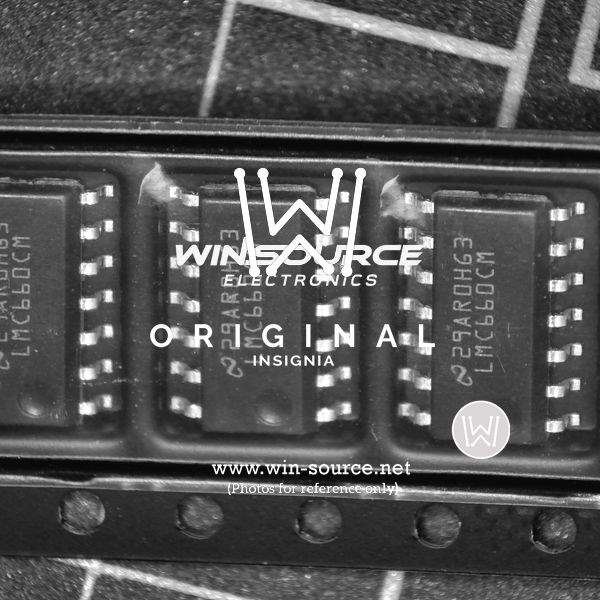

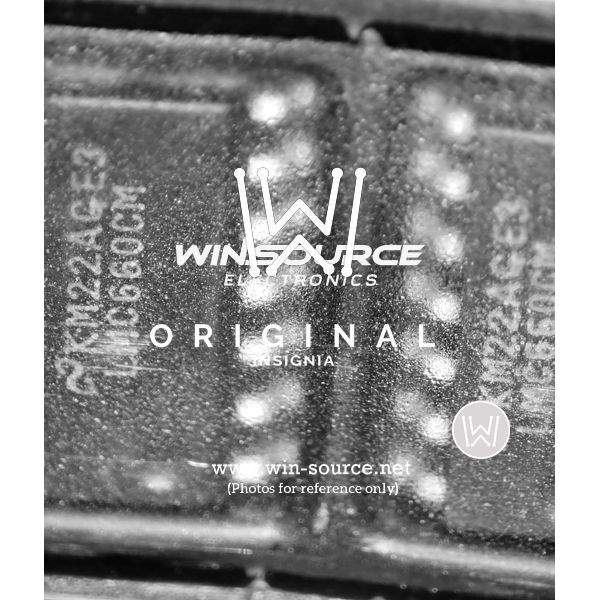

The LMC660CM is packaged in an industry-standard 14-pin SOIC, offering easy integration into a variety of circuit boards. Its CMOS technology ensures compatibility with other low-power logic families. Whether you are designing a sophisticated medical device or a simple analog filter, the LMC660CM provides the precision and reliability expected from Texas Instruments.

For detailed specifications, application notes, and additional resources, visit the Texas Instruments product page.
