Product Overview: LMH6554LEE/NOPB from Texas Instruments

The LMH6554LEE/NOPB is a high-performance, fully differential amplifier designed by Texas Instruments to cater to the demanding requirements of high-speed signal processing. This amplifier is a perfect solution for applications requiring low distortion, high signal-to-noise ratio, and a wide bandwidth. It is commonly used in data acquisition systems, high-speed ADC drivers, telecommunications, and professional audio equipment.

Key Features

• High Bandwidth: The device boasts an impressive bandwidth of 2.8 GHz with a 2 Vpp differential, ensuring that signals are amplified without significant loss of fidelity at high frequencies.
• Low Distortion: The LMH6554LEE/NOPB offers a low harmonic distortion, which is critical for maintaining signal integrity in high-performance systems.
• Adjustable Gain: The gain of the amplifier can be set by external resistors, providing flexibility and precision for various application needs.
• Power Supply Range: It operates over a wide supply range of ±2.5V to ±5.5V, accommodating different system power requirements.
• Output Disable Feature: The device includes an output disable feature that reduces power consumption and allows for multiplexing in multi-channel systems.

Applications

The LMH6554LEE/NOPB's versatility makes it suitable for a wide array of applications, including:

• High-speed data acquisition
• IF/RF signal processing
• Test and measurement equipment
• Professional audio and video broadcasting
• Medical imaging systems

Quality and Reliability

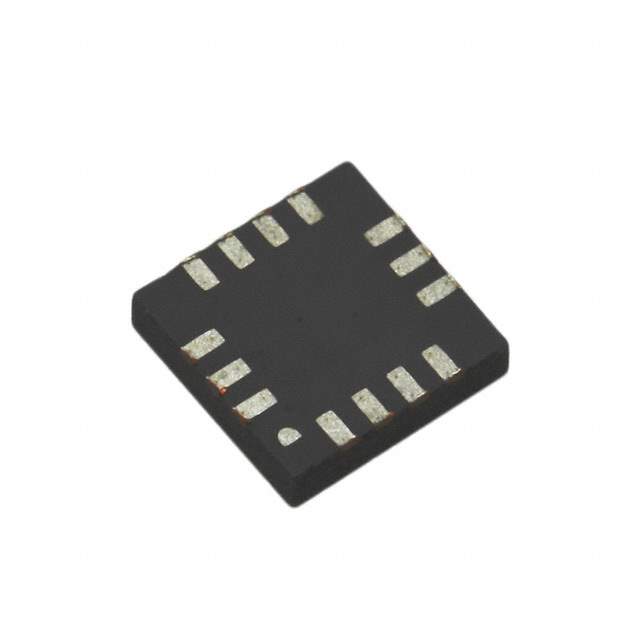

As with all Texas Instruments products, the LMH6554LEE/NOPB is designed to meet the highest standards of quality and reliability. This device is offered in a 16-lead WQFN package and is specified for operation from -40°C to 85°C, ensuring performance in a variety of environmental conditions.

Ordering Information

The product is available in a lead-free, environmentally friendly package, denoted by the "NOPB" (No Lead (Pb)) suffix in the part number, indicating compliance with RoHS regulations. This makes the LMH6554LEE/NOPB an ideal choice for environmentally conscious applications requiring high-speed, low-distortion amplification.
