Product Overview: LMK00105SQE/NOPB

The LMK00105SQE/NOPB is a high-performance, low-noise clock buffer from Texas Instruments designed to meet the stringent needs of complex digital systems. With its ability to distribute one clock input to five outputs with low skew, this device is ideal for applications requiring synchronized clock distribution for high-speed digital signal processing.

Key Features

• Low Skew Outputs: The LMK00105SQE/NOPB provides low skew (typically 50ps) between outputs, ensuring synchronized signals for multi-clock domain systems.
• Low Additive Jitter: The additive jitter is typically less than 0.1 ps RMS, which makes it an excellent choice for applications sensitive to timing noise, such as high-speed data converters.
• Wide Frequency Range: It supports a wide frequency range, accommodating various input clock frequencies and allowing for flexible system design.
• Supply Voltage: The device operates on a 3.3V supply voltage, providing compatibility with common system power rails.
• Format Flexibility: The LMK00105SQE/NOPB accepts LVCMOS, LVTTL, CML, LVDS, or LVPECL input clock formats, providing flexibility for interfacing with different signal standards.
• Output Enable Feature: Each output can be individually enabled or disabled, allowing for power savings and management of unused outputs.

Applications

This versatile clock buffer is suited for a variety of applications, including but not limited to:

• Networking equipment such as routers, switches, and base stations.
• Data communication in servers and storage systems.
• Telecommunication infrastructure.
• Test and measurement equipment.
• High-performance computing and data centers.

Quality and Reliability

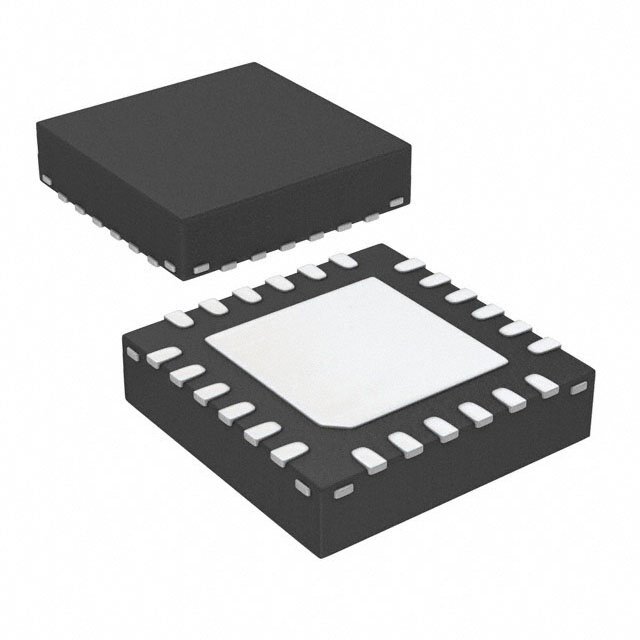

The LMK00105SQE/NOPB comes in a 24-pin WQFN package and is characterized for operation over the industrial temperature range of -40°C to 85°C. Texas Instruments ensures high-quality and reliability for this clock buffer, making it a dependable choice for mission-critical systems.
