The LMK00105SQX/NOPB from Texas Instruments is a high-performance, low-noise clock buffer that delivers excellent jitter performance, making it an ideal solution for demanding applications in telecommunications, computing, and data networking. This device is part of the LMK family, known for its robust and flexible clocking solutions.

Key Features:

• Low Additive Jitter: The LMK00105SQX/NOPB provides ultra-low additive jitter, typically around 50 fs RMS, which is critical for maintaining signal integrity in high-speed communication systems.
• Multiple Outputs: Equipped with five low-skew outputs, this clock buffer can distribute a single input clock to multiple destinations while maintaining tight skew control.
• Input Frequency Range: It supports a wide range of input frequencies from 0.1 MHz to 700 MHz, catering to a variety of clock sources and signal types.
• Output Format: The device can be configured to support various output formats, including LVCMOS, LVTTL, LVPECL, LVDS, or CML levels, providing versatility in interfacing with different logic families.
• Supply Voltage: Operating with a supply voltage range of 2.375 V to 3.465 V, the LMK00105SQX/NOPB is compatible with most common system voltages, ensuring easy integration into various designs.
• Programmable Features: The device offers programmable features such as output enable/disable, which allows for power saving and system optimization.
• Temperature Range: It operates over an industrial temperature range of -40°C to 85°C, ensuring reliable performance in a wide array of environments.

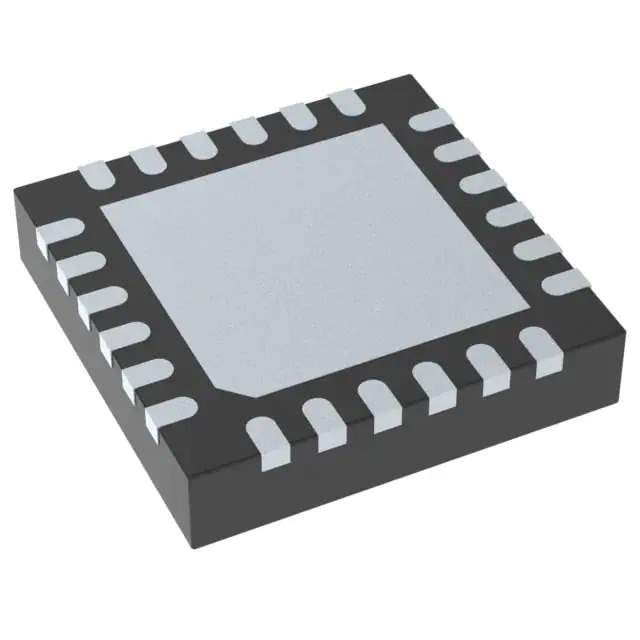

• Surface-Mount Package: The LMK00105SQX/NOPB comes in a compact, surface-mount 24-LLP (4x4) package, making it suitable for space-constrained applications.

Applications:

The LMK00105SQX/NOPB is designed for use in various applications that require precise clock distribution and noise minimization, such as:

• High-speed data converters
• Networking equipment (routers, switches, base stations)
• Storage systems
• Test and measurement equipment
• High-performance computing

With its robust feature set and Texas Instruments' reputation for quality, the LMK00105SQX/NOPB is an excellent choice for engineers looking to enhance the performance and reliability of their clocking systems.
