LMK04826BISQ/NOPB Clock Generator by Texas Instruments

The LMK04826BISQ/NOPB is a high-performance, low-noise clock generator produced by Texas Instruments, designed to meet the stringent requirements of complex and high-speed digital systems. This device is a member of the Ultra-Low Jitter Synthesizer and Jitter Cleaner family, offering a versatile solution for clock management in applications such as wireless infrastructure, data converters, test and measurement, and high-speed communication links.

The LMK04826BISQ/NOPB features an integrated dual-PLL (phase-locked loop) architecture, which allows it to generate multiple high-quality clock signals with programmable frequencies. It provides superior jitter cleaning and generation capabilities, with an integrated Voltage Controlled Oscillator (VCO) that operates in the range of 2.37 GHz to 2.63 GHz, ensuring precise and stable clock outputs.

One of the key advantages of this device is its flexibility. It supports various output formats, including LVPECL, LVDS, and LVCMOS, making it compatible with a wide range of digital systems. Additionally, the device has up to 14 configurable outputs that can be independently programmed to meet the specific timing requirements of different subsystems within an electronic design.

The LMK04826BISQ/NOPB also includes advanced features such as the ability to accept multiple input clock frequencies, a programmable input multiplexer, and a hitless switching function that minimizes phase disturbances during clock input switching. These features contribute to the robustness and reliability of the clock signal under various operating conditions.

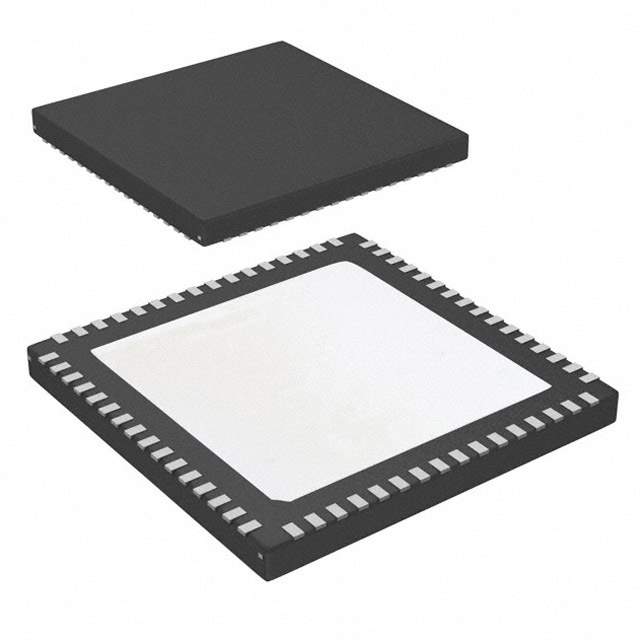

Designed for ease of use, the device is configured through an SPI or I2C compatible serial interface, allowing designers to easily customize the clock outputs for their specific application. The LMK04826BISQ/NOPB comes in a compact 64-pin WQFN package, making it suitable for space-constrained applications without compromising performance.

Overall, the LMK04826BISQ/NOPB from Texas Instruments is a versatile and high-quality solution for clock generation and synchronization, providing designers with a powerful tool to enhance the performance and integrity of their digital systems.
