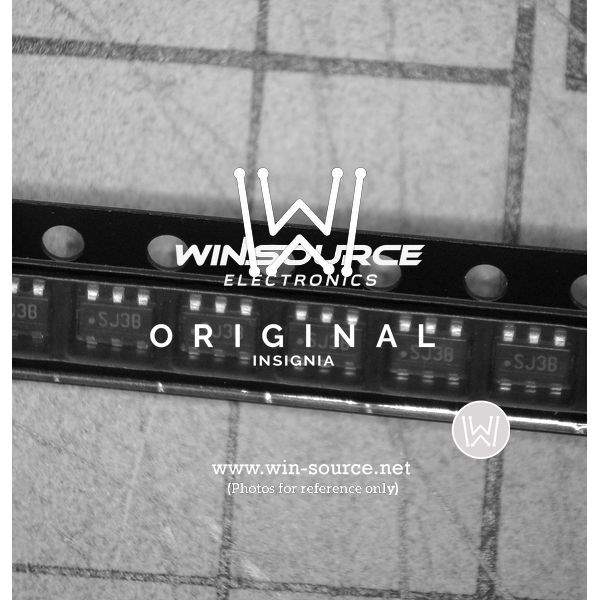

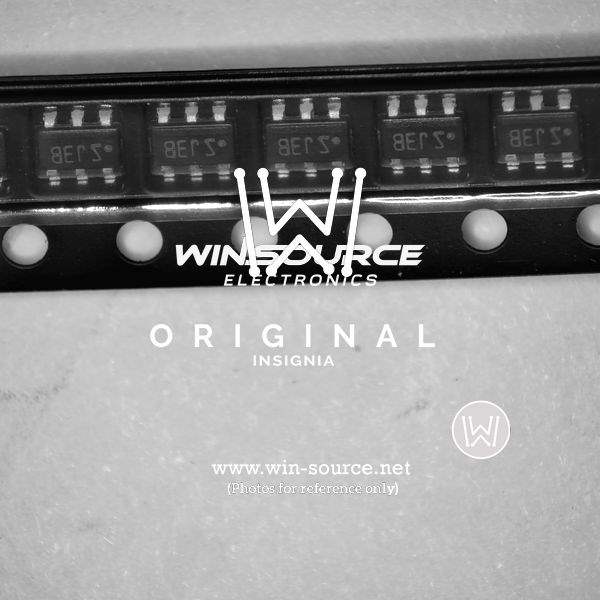

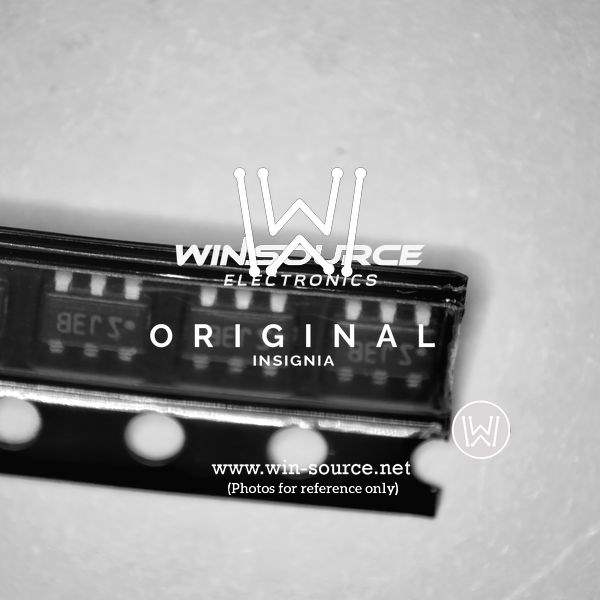

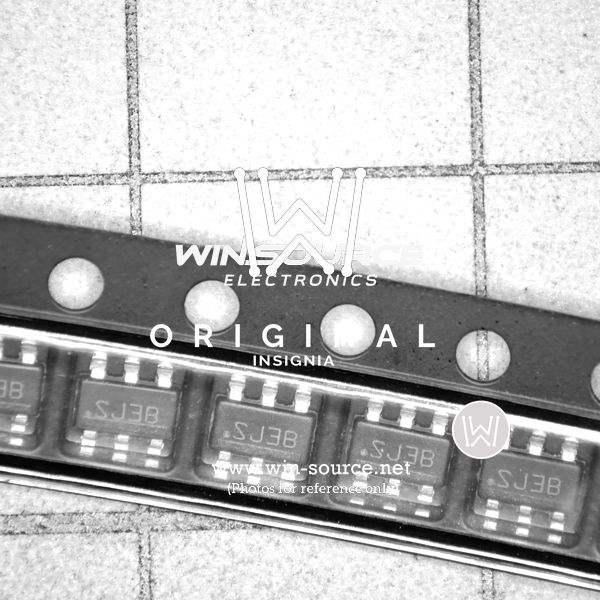

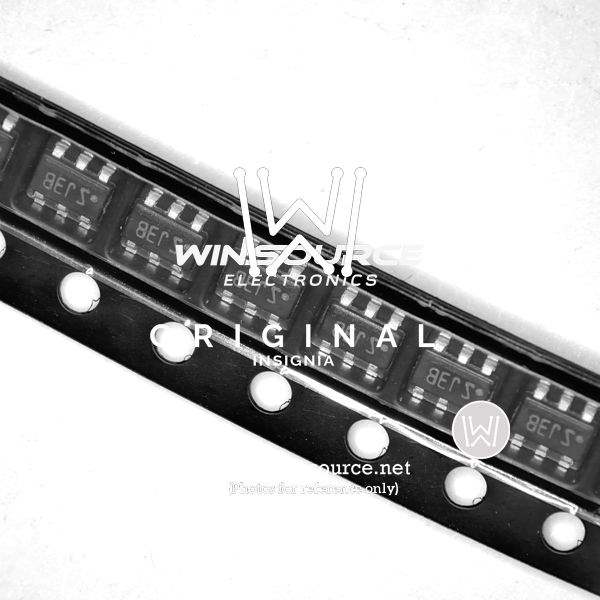

The LMR14203XMKX/NOPB is a sophisticated and high-performance switching regulator module developed by Texas Instruments. This product is a member of the SIMPLE SWITCHER® family, which is renowned for its ease of use and flexibility in various applications. With a compact micro SMD package, it offers a robust and practical solution for power supply design in a variety of industries.

The LMR14203XMKX/NOPB is a step-down regulator, also known as a buck converter. It is designed to convert a higher input voltage to a lower output voltage with high efficiency. The device is capable of supporting an input voltage range of 4.5V to 14V, making it suitable for a wide range of applications. Its output voltage can be adjusted from 0.765V to 11V, providing great flexibility in meeting the needs of various electronic devices.

• High Switching Frequency: 2.1 MHz, allowing the use of small external components, reducing the overall board space and cost.
• Internal Compensation: Simplifies the design process and reduces the number of external components required.
• Protection Features: Includes thermal shutdown, current limit, and input under-voltage lockout. These features ensure the safe and reliable operation of the device under various conditions.
• Soft-Start Feature: Limits the inrush current during startup, reducing stress on the input power source.
• RoHS Compliant and Lead-Free: Demonstrates Texas Instruments' commitment to environmentally friendly practices.

The LMR14203XMKX/NOPB is designed to meet the demanding requirements of various applications, including automotive systems, telecommunications equipment, industrial systems, and consumer electronics.

In summary, the LMR14203XMKX/NOPB from Texas Instruments is a high-performance, versatile, and reliable switching regulator module. Its wide input voltage range, adjustable output voltage, high switching frequency, and comprehensive protection features make it a strong choice for a variety of power supply design applications.
