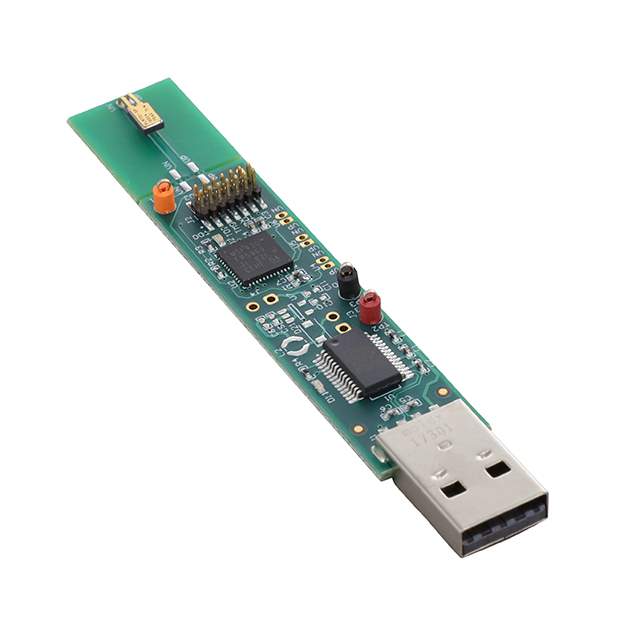

The LMT01EVM-CVAL is a comprehensive evaluation module designed by Texas Instruments to showcase the capabilities and functionalities of the LMT01 series of precision temperature sensors. This module is specifically tailored for engineers, designers, and hobbyists who seek to integrate high-accuracy temperature sensing into their projects or products.

Key Features

• High Precision: The LMT01 sensor provides a high level of accuracy, with a typical accuracy of ±0.5°C and a range from -50°C to 150°C, making it suitable for a wide array of applications.
• Two-Pin Sensing: The device operates with a unique two-pin interface that simplifies the wiring and integration process, allowing for a straightforward connection to microcontrollers or other systems.
• Pulse-Width Modulation (PWM) Output: Temperature data is conveyed via a PWM output, which can be easily interpreted by most microcontrollers, providing a versatile solution for digital temperature readings.
• Flexible Power Supply: The LMT01 sensor can be powered by a wide range of supply voltages, from 2.7V to 5.5V, accommodating various system design requirements.

Applications

The versatility of the LMT01EVM-CVAL makes it an excellent choice for numerous applications, such as:

• Industrial temperature monitoring systems
• Consumer electronics temperature management
• Healthcare devices like clinical thermometers
• Environmental monitoring and HVAC systems

Evaluation Module Components

The evaluation module includes the LMT01 temperature sensor and necessary hardware to facilitate easy testing and integration. It also features an intuitive user interface for quick setup and evaluation. The module may come with additional resources like sample code, detailed documentation, and software tools to assist users in developing and debugging their temperature sensing solutions.

By utilizing the LMT01EVM-CVAL, developers can rapidly prototype and test their temperature sensing applications, significantly reducing the time to market. Its precision, ease of use, and adaptability make it an invaluable tool for any temperature monitoring project.
