The LMX2326SLBX from Texas Instruments is a high-performance, low-power frequency synthesizer system which includes a fully integrated delta-sigma PLL (Phase-Locked Loop) and VCO (Voltage-Controlled Oscillator). This device is designed to generate a stable, precise output frequency that can be used in a wide range of applications such as wireless communication systems, instrumentation, and consumer electronics.

Key Features

• High Frequency Range: The LMX2326SLBX operates over a broad frequency range, making it suitable for various applications. It can generate frequencies from 2.5 GHz to 4 GHz, depending on the external components used.
• Low Phase Noise: The device offers excellent phase noise performance, which is critical for maintaining signal integrity in communication systems and ensuring high-quality data transmission.
• Programmable Divider: It includes a programmable dual modulus prescaler, which allows the user to adjust the frequency division ratio, providing flexibility in generating the desired output frequency.
• Power Efficiency: The LMX2326SLBX is designed for low power consumption, making it an ideal choice for battery-operated devices where power efficiency is paramount.
• Serial Interface: The device can be programmed via a three-wire serial interface, simplifying the integration into digital systems and allowing for easy control and configuration.

Applications

The LMX2326SLBX is versatile and can be used in a variety of applications, including:

• Wireless communication systems such as GSM, CDMA, LTE, and 5G
• RFID readers and writers
• Test and measurement equipment
• Satellite communication systems
• Consumer electronics

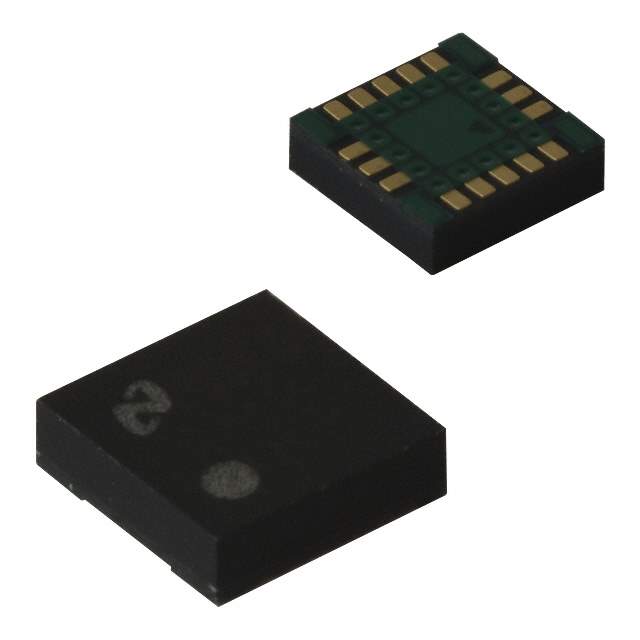

Package and Quality

The Texas Instruments LMX2326SLBX is available in a compact surface-mount package, which is suitable for space-constrained applications. It adheres to Texas Instruments' rigorous quality standards, ensuring reliability and performance consistency across various environmental conditions.
