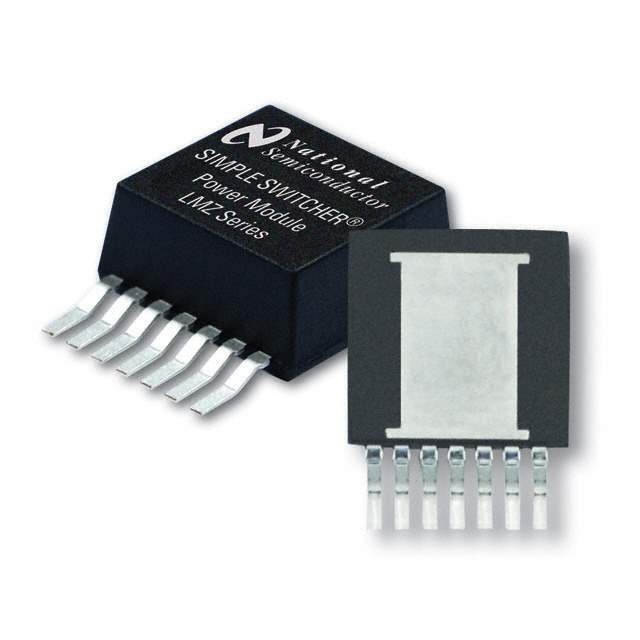

Same model may have multiple batches, images only for reference.

LMZ22003TZ/NOPB

Name: LMZ22003TZ/NOPB
Brand: Texas Instruments
SKU: 187741
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	LMZ22003TZ/NOPB
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	IC BUCK SYNC 20V 3A TO-PMOD-7
Datasheet	LMZ22003TZ/NOPB Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Texas Instruments
Series	SIMPLE SWITCHER?
Packaging	Tube
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	6V
Voltage - Input (Max)	20V
Voltage - Output 1	0.8 ~ 6 V
Current - Output (Max)	3A
Applications	ITE (Commercial)
Features	UVLO
Mounting Style	SMD/SMT
Package	TO-PMOD-7, Power Module
Size / Dimension	0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm)
Operating Temperature Range	-40°C ~ 125°C
Efficiency	92%
Power (Watts) - Max	18W
Win Source Part Number	144951-LMZ22003TZ/NOPB
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian LMZ22003TZ/NOPB CAD Model

Alternative Products

Description

The is a high-performance power module from Texas Instruments, designed to provide efficient power conversion in low-voltage applications.

Output Current: 10A
Input Voltage Range: 2.95V to 5.5V
Output Voltage Range: 0.8V to 3.6V
Efficiency: Up to 95%
Protection Features: Over-temperature, over-current, and under-voltage lockout
Features: Adjustable soft-start, pin-to-pin compatible family
Package Size: Compact QFN package
Applications: Low voltage systems, battery-powered devices
