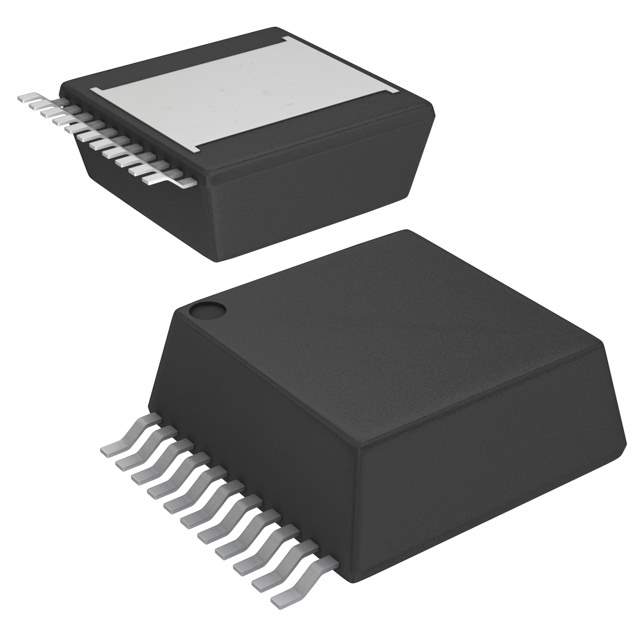

LMZ23608TZE/NOPB - Texas Instruments

The LMZ23608TZE/NOPB is a high-efficiency, easy-to-use, 8A power module from Texas Instruments. This innovative power solution combines a DC/DC converter with power MOSFETs, a shielded inductor, and passives into a low profile, QFN package. This compact module is designed for space-constrained applications and is capable of delivering a reliable, high-performance power supply solution with minimal external components.

Featuring an input voltage range of 6V to 36V, the LMZ23608TZE/NOPB is versatile for various systems, accommodating a wide array of supply voltages. It supports an adjustable output voltage range from 0.8V to 6V, allowing for flexibility in targeting specific voltages required by the load. The module's high efficiency, up to 95%, ensures minimal heat generation and makes it suitable for high-power density applications.

The LMZ23608TZE/NOPB integrates advanced features such as an adjustable soft-start, precision enable, pre-bias start-up, and a power-good flag, which makes it an ideal choice for a broad range of applications, including industrial, communications, and infrastructure equipment. Its synchronization capability allows for reduced EMI and provides the option to synchronize to an external clock.

The module's innovative package design enhances thermal performance and allows for operation over a wide temperature range of -40°C to +125°C. The presence of overcurrent and overtemperature protection ensures the reliability and longevity of both the module and the system it powers. The LMZ23608TZE/NOPB is also lead-free and RoHS compliant, making it an environmentally friendly choice for power supply design.

In summary, the LMZ23608TZE/NOPB from Texas Instruments is a robust, efficient, and easy-to-use power module, perfect for designers looking to reduce design complexity and time-to-market, while maintaining high performance in their power supply applications.
