Overview of Texas Instruments LMZ31503RUQR

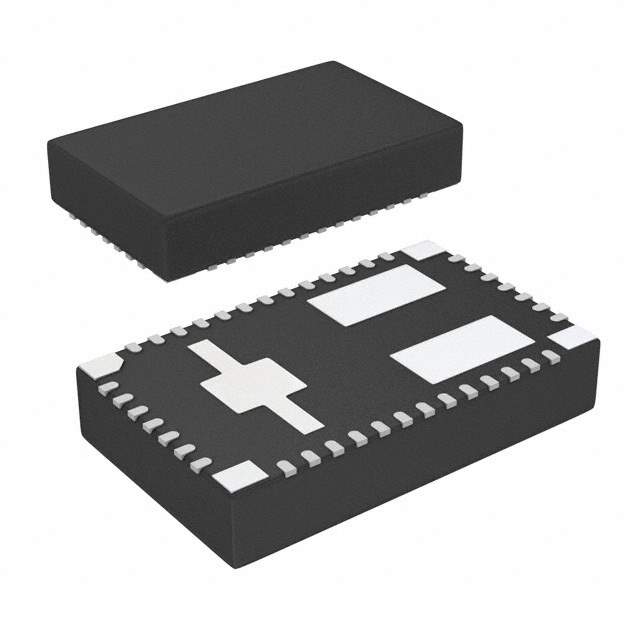

The Texas Instruments LMZ31503RUQR is a high-performance, easy-to-use power solution that integrates a DC-DC converter with power MOSFETs, a shielded inductor, and passives into a low profile, QFN package. This power module is designed to simplify the power supply design process for a wide range of applications, while ensuring robust performance and reliability.

Key Features

• Integrated Power Solution: The LMZ31503RUQR combines a 3A DC-DC converter with power components in a compact package, reducing design complexity and footprint.
• Efficiency: This module offers high efficiency across a wide load range, making it suitable for battery-powered and energy-sensitive applications.
• Adjustable Output Voltage: The output voltage can be adjusted from 0.6V to 3.6V, allowing for a wide range of uses in different circuit designs.
• Wide Input Voltage Range: It supports an input voltage range of 2.95V to 17V, accommodating various supply voltages.
• Thermal Performance: Enhanced thermal performance is achieved through an exposed pad and excellent power dissipation, ensuring reliable operation under varying conditions.
• Protection Features: The module includes over-temperature and over-current protection, enhancing system safety and longevity.

Applications

The LMZ31503RUQR is versatile and can be used in a multitude of applications, including:

• Telecommunications Infrastructure
• Industrial Automation
• Networking Equipment
• Point-of-Load Conversions
• Computing and Storage

Quality and Reliability

Texas Instruments is known for its commitment to quality and the LMZ31503RUQR is no exception. It is designed to meet the rigorous standards required for industrial and telecommunications applications. With its integrated approach, the module reduces potential points of failure and increases system reliability.

Conclusion

The LMZ31503RUQR from Texas Instruments represents a robust, efficient, and versatile power solution that streamlines the design process for engineers. Its integrated design, coupled with a wide input voltage range and adjustable output, makes it an excellent choice for a diverse array of electronic applications.
