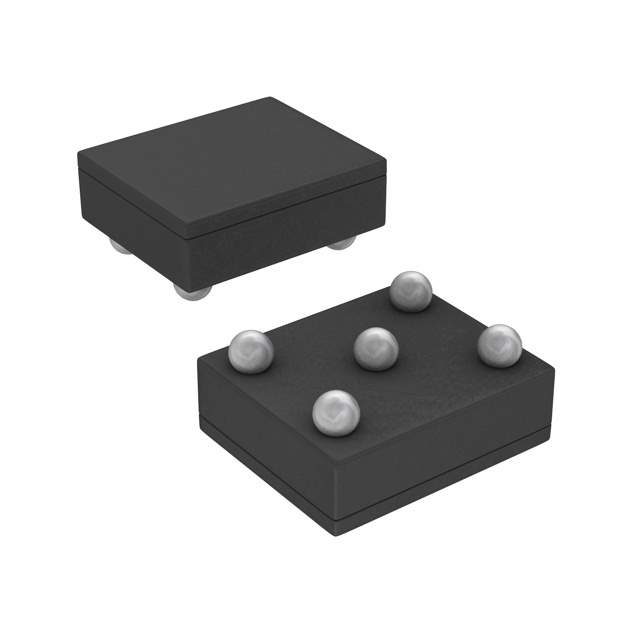

LP2985ITP-2.5/NOPB Real Image
Same model may have multiple batches, images only for reference.

LP2985ITP-2.5/NOPB

Part No LP2985ITP-2.5/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 2.5V 0.15A 5DSBGA
Datasheet
LP2985ITP-2.5/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 16V
Nominal Output Voltage (Min/Fixed) 2.5V
Dropout Voltage-Max 0.58V @ 150mA
Output Current 150mA
Operating Supply Current 95μA to 2.5mA
PSRR 45dB (1kHz)
Control Features Enable
Protection Features Over Current, Over Temperature, Short Circuit
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 2.5V
Voltage - Dropout (Typical) 0.28V @ 150mA
Mounting SMD (SMT)
Case / Package 5-DSBGA
Win Source Part Number 137588-LP2985ITP-2.5/NOPB
Ultra Librarian 3D Model Ultra Librarian LP2985ITP-2.5/NOPB CAD Model

Description

The LP2985ITP-2.5/NOPB is a high-quality, high-performance low-dropout regulator from Texas Instruments. It is designed to deliver a fixed output voltage of 2.5V with an output current of 150mA.

  • Output Voltage: 2.5V
  • Output Current: 150mA
  • Low Dropout Voltage: 300mV at full load
  • Low Noise: 30μVRMS
  • PSRR: 60dB at 1kHz
  • Package: SOT-23
  • Safety Features: Thermal shutdown and current limit protection
  • Applications: Audio and video equipment, sensitive electronic devices
