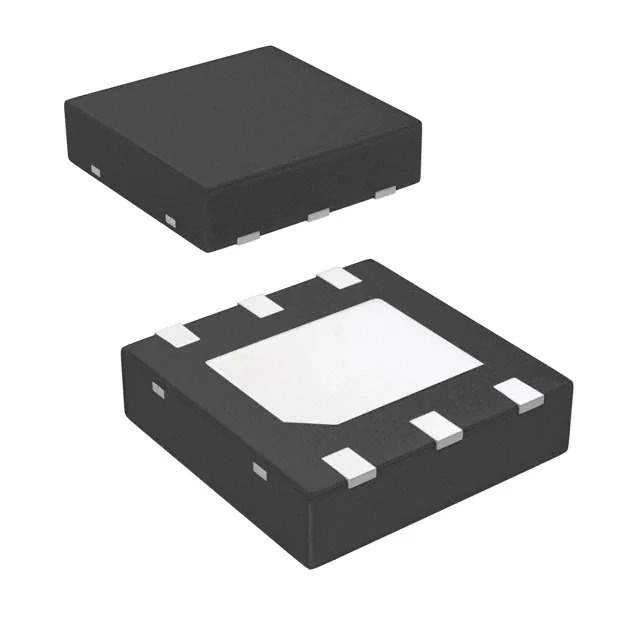

LP38693QSDX-3.3/NOPB

Part No LP38693QSDX-3.3/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 3.3V 500MA 6WSON
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear
Mfr Texas Instruments
Series Automotive, AEC-Q100
Package Tape & Reel
Product Status Active
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 10V
Voltage - Output (Min/Fixed) 3.3V
Voltage Dropout (Max) 0.55V @ 500mA
Current - Output 500mA
Current - Quiescent (Iq) 55 µA
Current - Supply (Max) 100 µA
PSRR 55dB (120Hz)
Control Features Enable
Protection Features Over Temperature
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 6-WDFN Exposed Pad
Supplier Device Package 6-WSON (3x3)
Base Product Number LP38693
Standard Package 4,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 877916-LP38693QSDX-3.3/NOPB
Ultra Librarian 3D Model Ultra Librarian LP38693QSDX-3.3/NOPB CAD Model

Description

The LP38693QSDX-3.3/NOPB is a high-performance, low-dropout regulator (LDO) from Texas Instruments, designed to provide a stable and reliable power supply in a wide range of electronic applications. This LDO is capable of delivering up to 500 mA of continuous current with an input voltage range from 2.7V to 10V, making it suitable for battery-powered devices, portable electronics, and other low-voltage systems.

One of the key features of the LP38693QSDX-3.3/NOPB is its low dropout voltage, which allows it to maintain regulation with minimal difference between the input and output voltages. This is particularly beneficial in extending battery life in portable applications, as it enables the regulator to continue operating even as the battery voltage declines.

Key Features

  • Fixed Output Voltage: 3.3V
  • Output Current: 500 mA
  • Low Dropout Voltage: Typically 280 mV at full load
  • High Accuracy: Output voltage accuracy is within ±1%
  • Stable with Low-ESR Capacitors: Compatible with ceramic, tantalum, and aluminum electrolytic capacitors
  • Thermal Shutdown and Overcurrent Protection: Ensures safe operation under abnormal operating conditions
  • Green Product (RoHS compliant): Free of hazardous substances, making it environmentally friendly

Applications

With its robust feature set, the LP38693QSDX-3.3/NOPB is ideal for a variety of applications, including but not limited to:

  • Mobile Phones
  • Wireless LAN and Bluetooth® Devices
  • Handheld Instruments
  • GPS Receivers
  • Consumer Electronics

The LP38693QSDX-3.3/NOPB comes in a small, surface-mount X2SON package, which is highly advantageous for space-constrained applications. Its no-pullback (NOPB) designation indicates that it is available in a lead-free finish, supporting the industry's move towards more environmentally sustainable manufacturing processes.

Overall, Texas Instruments' LP38693QSDX-3.3/NOPB is a reliable and efficient solution for designers looking to improve power management in their electronic designs while reducing the overall footprint on the PCB.
