Product Overview: LP3944ISQX/NOPB

The LP3944ISQX/NOPB is a versatile, programmable LED driver designed by Texas Instruments to offer a comprehensive solution for driving multiple LEDs in portable devices. This integrated circuit (IC) is particularly suitable for applications such as mobile phones, personal digital assistants (PDAs), and other handheld devices where efficient power management and space-saving design are critical.

Key Features

• Multiple LED Support: The device can drive up to eight LEDs with individual programmable current for each, allowing for a customized lighting solution.
• Programmable Dimming: It provides programmable dimming capability through an I2C-compatible interface, enabling dynamic brightness control for power savings and ambient light adjustment.
• Charge Pump Technology: The IC utilizes a 1x/1.5x charge pump to maintain consistent LED brightness, even with varying input voltages, ensuring optimal performance.
• Low Power Consumption: Designed for battery-powered applications, the LP3944ISQX/NOPB emphasizes low power consumption to extend battery life.
• Thermal Shutdown Protection: The built-in thermal shutdown feature ensures the device operates within safe temperature ranges, protecting both the IC and the LEDs from potential thermal damage.

Technical Specifications

• Input Voltage Range: 2.7V to 5.5V
• Output Current: Up to 30 mA per LED
• Communication Interface: I2C-compatible

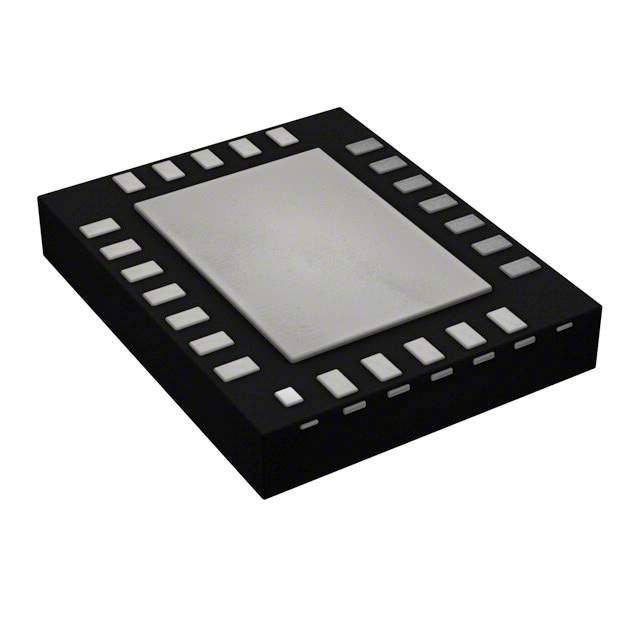

• Package: Small 24-lead LLP (4x4 mm)
• Operating Temperature Range: -40°C to +85°C

Applications

The LP3944ISQX/NOPB is ideal for a range of applications that require multiple LED driving capabilities. These include, but are not limited to:

• Backlighting for LCD displays
• Keypad illumination for mobile devices
• Indicator and fun lighting effects
• General-purpose LED lighting applications

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the LP3944ISQX/NOPB is no exception. The device is RoHS compliant and is designed to meet the high reliability standards required in portable consumer electronics. With its robust design and advanced features, the LP3944ISQX/NOPB stands out as a smart choice for designers looking to enhance their LED lighting systems.
