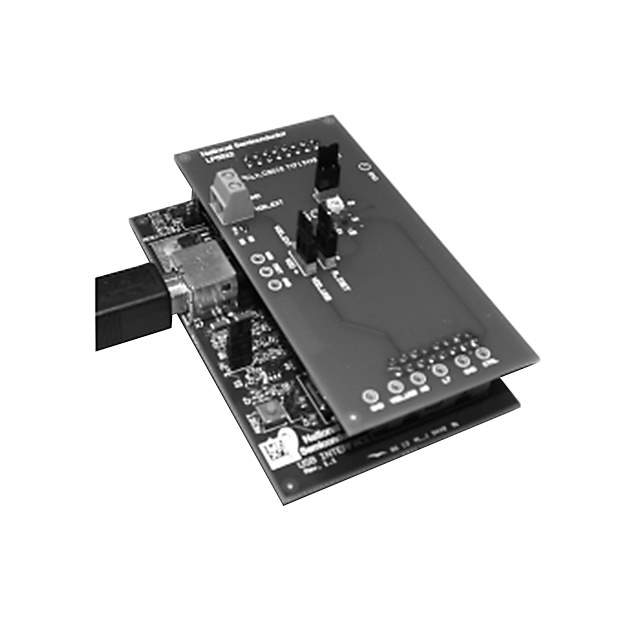

The LP5522TMEV, designed and manufactured by Texas Instruments, is a versatile and efficient solution for LED lighting control. This product is part of TI's Power Management ICs category, specifically within the LED Drivers subcategory. It is engineered to facilitate easy and flexible control over LED brightness, color, and animation, making it an ideal choice for a wide range of applications including smartphones, tablets, and other portable devices that require dynamic lighting effects.

Key Features

• Programmable Lighting Control: The LP5522TMEV allows designers to program intricate lighting sequences with its onboard memory, enabling the creation of complex lighting patterns without continuous intervention from the host processor.
• Energy Efficiency: With its high-efficiency charge pump and autonomous operation, the LP5522TMEV minimizes power consumption, thereby extending battery life in portable applications.
• Multiple LED Channels: This driver supports up to nine independently controlled LED outputs, providing the flexibility to manage multiple LEDs with different brightness levels and lighting effects.
• I2C-Compatible Interface: The device features an I2C interface for programming and control, ensuring straightforward integration with most microcontrollers and processors.

Applications

The LP5522TMEV is suitable for a variety of applications where dynamic and programmable LED lighting is desired. These applications include:

• Smartphone and tablet notification LEDs
• Portable device backlighting
• Wearable technology lighting
• Industrial and automotive lighting systems

Technical Specifications

Some of the technical specifications of the LP5522TMEV include:

• Input voltage range: 2.7V to 5.5V
• Three programmable LED outputs with up to 25.5 mA drive current per channel
• Integrated 1.0 MHz fixed-frequency synchronous boost converter
• Programmable over I2C interface

Development Support

Texas Instruments provides extensive development support for the LP5522TMEV, including evaluation modules, comprehensive datasheets, application notes, and online design tools. These resources are designed to streamline the development process, from initial design through to final production.

For more information or to purchase the LP5522TMEV, please visit the Texas Instruments official website or contact your local TI distributor.
