Product Overview: MSP430F5632IZQWR

The MSP430F5632IZQWR is a high-performance microcontroller from Texas Instruments, renowned for its ultra-low-power consumption and versatile feature set. This microcontroller is part of the MSP430 family, which is particularly well-suited for battery-powered and energy-harvesting applications due to its efficient power management and rich peripheral integration.

Key Features

• Core: The device is built around a 16-bit RISC CPU, offering a balanced combination of processing power and energy efficiency. This allows for sophisticated algorithms and control applications while maintaining low power consumption.
• Memory: It includes 32KB of flash memory and 4KB of RAM, providing ample space for program storage and data manipulation. The flash memory is particularly durable, with guaranteed data retention and the ability to endure frequent write cycles.
• Digital and Analog Peripherals: A variety of peripherals are integrated, including digital communication interfaces such as I2C, SPI, and UARTs, as well as analog modules like a 12-bit analog-to-digital converter (ADC) and a comparator, enhancing its capability to interface with sensors and other external components.
• Timer Systems: Multiple timer systems enable precision timing and pulse-width modulation (PWM) for tasks such as motor control and event timing.
• Power Management: The MSP430F5632IZQWR features a flexible power management system with an ultra-low-power mode, allowing the microcontroller to conserve energy during idle periods.

Package and Temperature Range

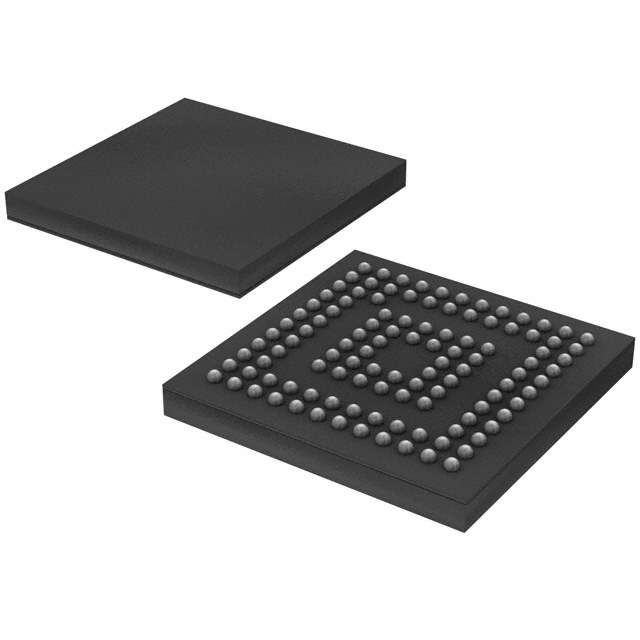

The microcontroller comes in a compact 80-pin RGC package, which is designed for space-constrained applications. It operates across an industrial temperature range, making it suitable for harsh environments.

Applications

With its robust set of features, the MSP430F5632IZQWR is ideal for a wide range of applications such as:

• Industrial control systems
• Sensor monitoring and data acquisition
• Portable medical devices
• Energy management systems
• Wireless networking and IoT devices

Overall, the MSP430F5632IZQWR from Texas Instruments is a highly capable microcontroller that offers a perfect blend of power efficiency and performance, making it a top choice for engineers and designers working on next-generation embedded systems.
