Product Overview: Texas Instruments OPA2197IDR

The OPA2197IDR from Texas Instruments is a high-precision operational amplifier that offers a perfect blend of performance and versatility, designed to meet a wide range of application needs. This op-amp is part of the OPAx197 family, which is known for its low offset voltage, low noise, and high gain bandwidth product, making it an excellent choice for applications requiring high accuracy and stability.

Key Features

• Precision Performance: The OPA2197IDR boasts a low offset voltage of just 25 µV and a low drift over temperature, ensuring consistent performance over a wide range of conditions.
• High Bandwidth: With a gain bandwidth product of 10 MHz, this operational amplifier is capable of handling high-speed signals, making it suitable for audio, data acquisition, and process control applications.
• Low Noise: The device features a noise density of 7.5 nV/√Hz at 1 kHz, which makes it ideal for applications where a low noise floor is critical.
• Rail-to-Rail Output: The OPA2197IDR can drive its output to within millivolts of the rails, maximizing dynamic range in single-supply operations.
• Wide Supply Range: It operates from a supply voltage range of 4.5 V to 36 V, or ±2.25 V to ±18 V for dual-supply applications, providing flexibility in various circuit designs.
• Robust Design: The device is specified for operation from -40°C to +125°C, which ensures reliable performance in extreme environments.

Applications

• Test and Measurement Equipment
• Precision Data Acquisition Systems
• Audio Processing
• Industrial Process Controls
• Analog Filters
• Medical Instrumentation

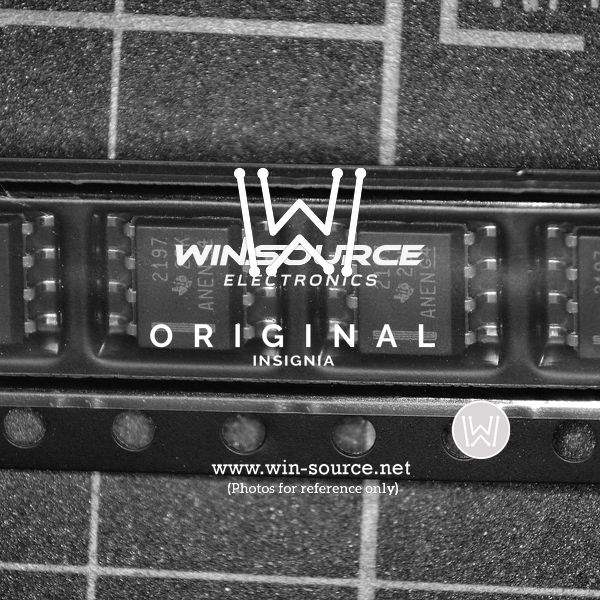

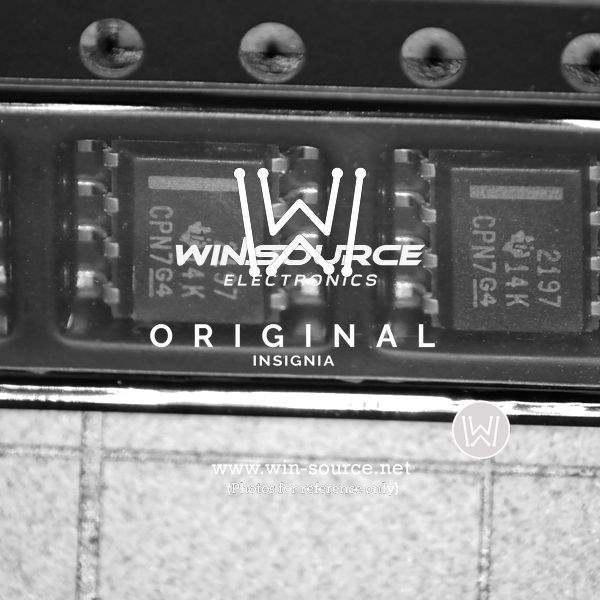

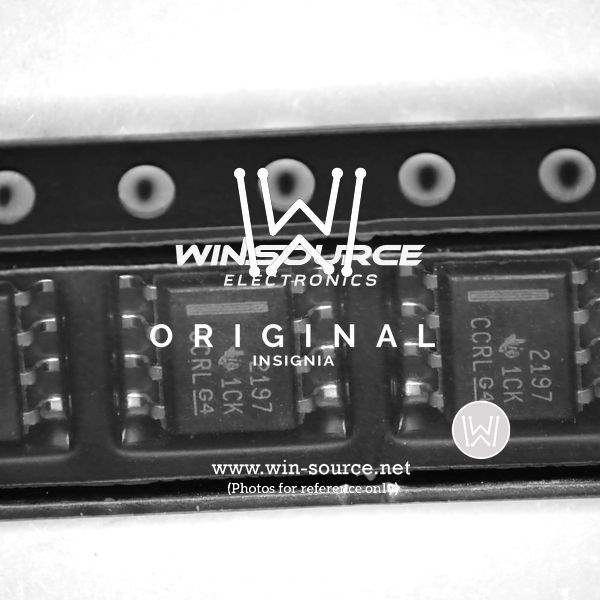

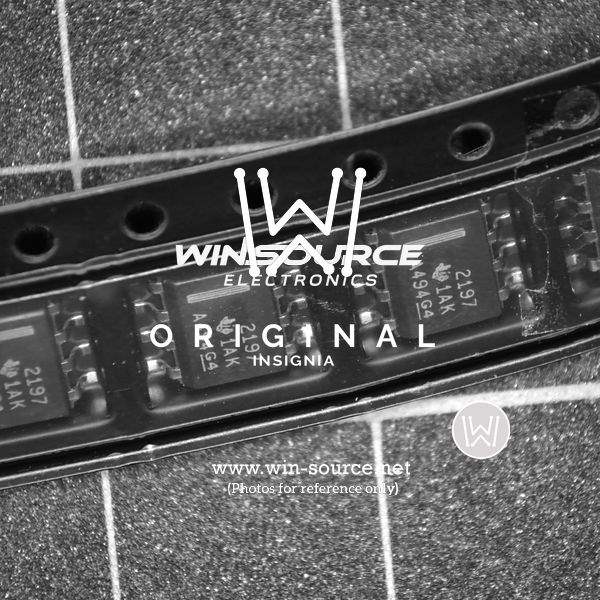

The OPA2197IDR is offered in an SOIC-8 package, which is compact and ideal for space-constrained applications. With its exceptional performance, the OPA2197IDR from Texas Instruments stands out as a reliable and efficient solution for designers looking to improve the accuracy and integrity of their signal processing systems.
