Overview of Texas Instruments OPA2322AIDRGR

The OPA2322AIDRGR is a state-of-the-art operational amplifier (op-amp) produced by Texas Instruments, a leader in semiconductor design and manufacturing. This high-performance device is designed to meet the demanding requirements of precision, low-power applications. With its dual-channel configuration, the OPA2322AIDRGR offers excellent versatility for a wide range of electronic circuits, including medical instruments, sensor amplifiers, and active filters.

Key Features

• Precision Performance: The OPA2322AIDRGR boasts a low offset voltage of 150 µV and a low noise density of 8 nV/√Hz, ensuring accurate signal amplification with minimal signal distortion.
• Wide Bandwidth: It features a wide bandwidth of 20 MHz, which allows it to handle high-speed signals effectively, making it suitable for fast-operating systems.
• Low Power Consumption: With a quiescent current of just 1.45 mA per channel, this op-amp is an excellent choice for battery-powered and energy-sensitive applications.
• Rail-to-Rail Output: The device provides rail-to-rail output swing, which maximizes the dynamic range within a given supply voltage range, making it ideal for single-supply operations.
• Supply Voltage Range: It operates over a wide supply voltage range from 4.5 V to 5.5 V, accommodating various power supply requirements.

Package and Quality

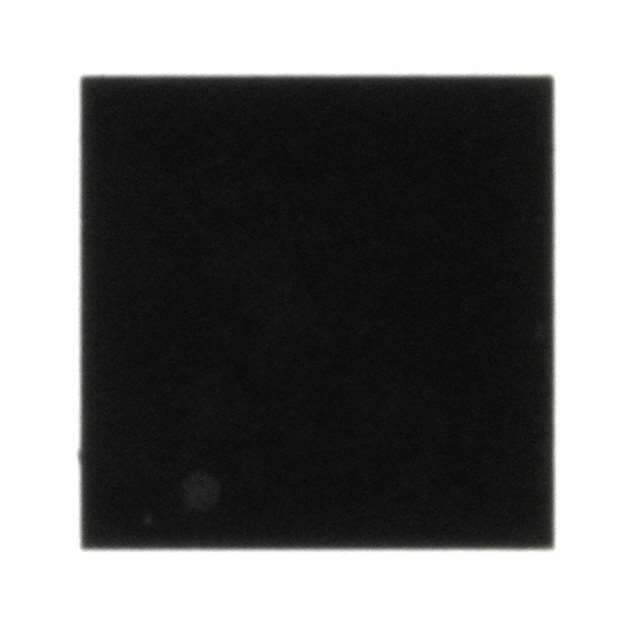

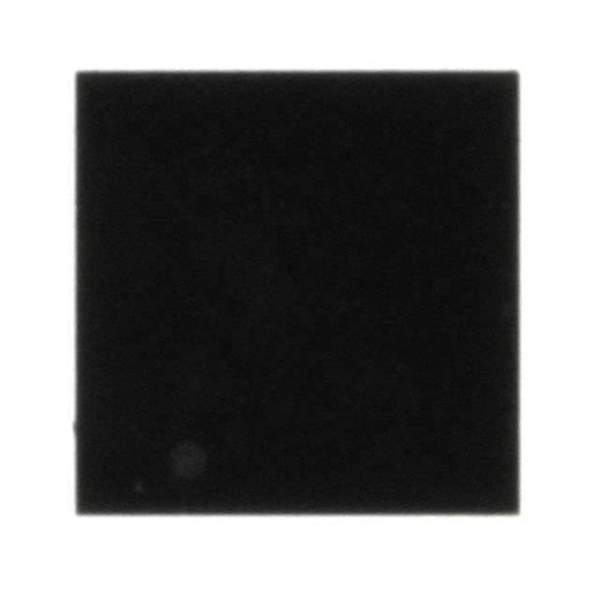

The OPA2322AIDRGR comes in a compact VQFN-8 package, which is highly space-efficient and suitable for densely populated PCBs. The package is designed to provide excellent thermal performance and reliability. Additionally, Texas Instruments ensures that their products meet rigorous industry standards, and this op-amp is no exception, with quality and longevity being paramount.

Applications

• Test and Measurement Equipment
• Audio and Video Processing
• Data Acquisition Systems
• Active Filtering
• Medical Instrumentation
• Portable Devices

In summary, the OPA2322AIDRGR from Texas Instruments is a versatile, low-power, precision operational amplifier that is well-suited for a multitude of electronic applications where performance and efficiency are crucial.
