Overview of the OPA2356AIDGKR from Texas Instruments

The OPA2356AIDGKR is a high-performance, dual-channel operational amplifier (op-amp) designed by Texas Instruments, a leader in semiconductor solutions. This op-amp is known for its high-speed operation and low power consumption, making it an ideal choice for a wide range of applications including video, communications, and test equipment.

Key Features

• High-Speed Performance: The OPA2356AIDGKR boasts a high bandwidth of 290 MHz and a fast slew rate of 160 V/µs, which allows it to handle rapid signal changes efficiently, making it perfect for high-frequency signal processing.
• Low Power Consumption: With a quiescent current of just 4.3 mA per channel, this op-amp is optimized for low-power applications, helping to extend battery life in portable devices.
• Wide Supply Range: The device operates over a wide supply range of ±2.5V to ±5.5V, providing design flexibility across various power supply specifications.
• Dual-Channel Configuration: The dual op-amps within a single package allow for compact circuit designs and can be used in differential signal processing or other dual-channel applications.

Applications

The OPA2356AIDGKR is versatile and can be used in various applications such as:

• Active filters
• ADC buffer amplifiers
• Video and audio processing circuits
• Signal conditioning
• Test and measurement equipment

Package and Quality

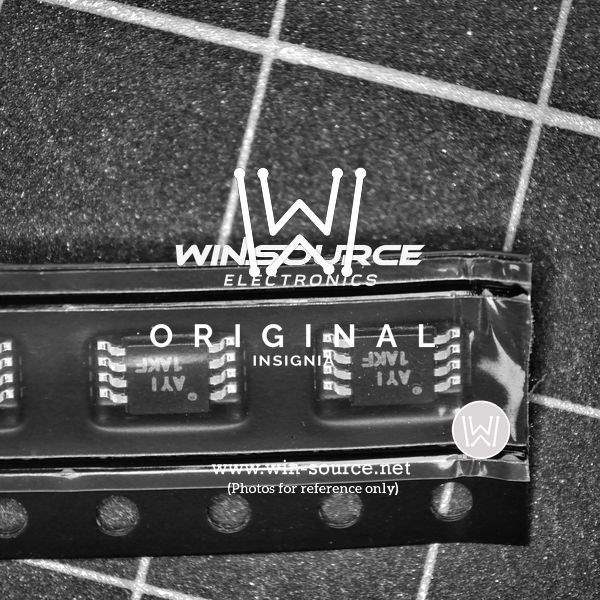

The device comes in an industry-standard VSSOP-8 (DGK) package, which is compact and suitable for space-constrained applications. The package is RoHS compliant and designed for surface mount technology (SMT), which simplifies the manufacturing process and allows for automated assembly.

As with all Texas Instruments products, the OPA2356AIDGKR is manufactured to high-quality standards, ensuring reliability and performance consistency. The product is supported by comprehensive technical documentation, including datasheets, application notes, and design resources, available on the Texas Instruments website.

Whether you are designing a high-speed communication system, a precise test instrument, or a portable video device, the OPA2356AIDGKR offers the performance, power efficiency, and reliability you need to create an optimal solution.
