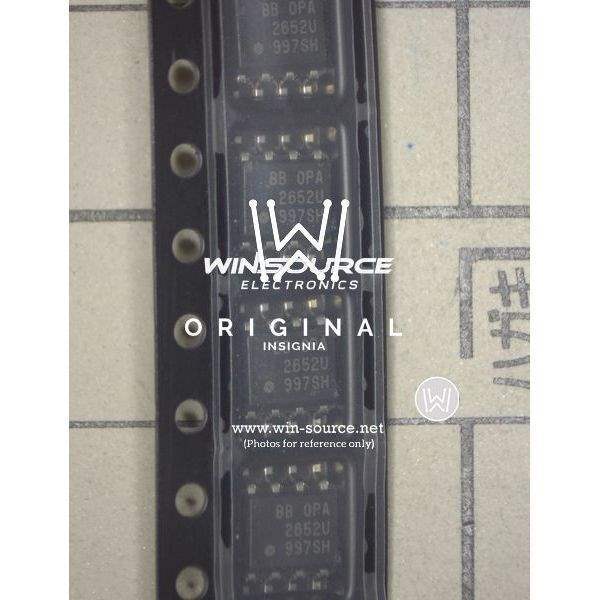

OPA2652U/2K5 Real Image OPA2652U/2K5 real image
Same model may have multiple batches, images only for reference.
OPA2652U/2K5 Real Image OPA2652U/2K5 real image
OPA2652U/2K5 Real Image OPA2652U/2K5 real image
Same model may have multiple batches, images only for reference.

OPA2652U/2K5

Part No OPA2652U/2K5
Manufacturer Texas Instruments
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP VFB 200MHZ 8SOIC
Datasheet
OPA2652U/2K5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Amplifier Type Voltage Feedback
Number of Circuits 2
Slew Rate 335 V/μs
Gain Bandwidth Product (GBP) 200MHz
-3db Bandwidth 700MHz
Current - Input Bias 4μA
Voltage - Input Offset 1.5mV
Operating Supply Current 11mA
Channel Output Current 140mA
Supply Voltage - Operating 6 V to 12 V, ±3 V to 6 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 8-SOIC
Win Source Part Number 004233-OPA2652U/2K5
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian OPA2652U/2K5 CAD Model

Description

The OPA2652U/2K5 from Texas Instruments is a high-performance, dual operational amplifier (op-amp) that offers a wide range of features designed to meet the needs of a variety of applications.

  • Bandwidth: 180 MHz (G = +2)
  • Slew Rate: 400 V/µs
  • Total Harmonic Distortion (THD): -66 dBc @ 20 MHz
  • Differential Gain: 0.02%
  • Differential Phase: 0.02°
  • Supply Voltage Range: ±5V to ±12V
  • Quiescent Current: 6.5 mA per channel
