Same model may have multiple batches, images only for reference.

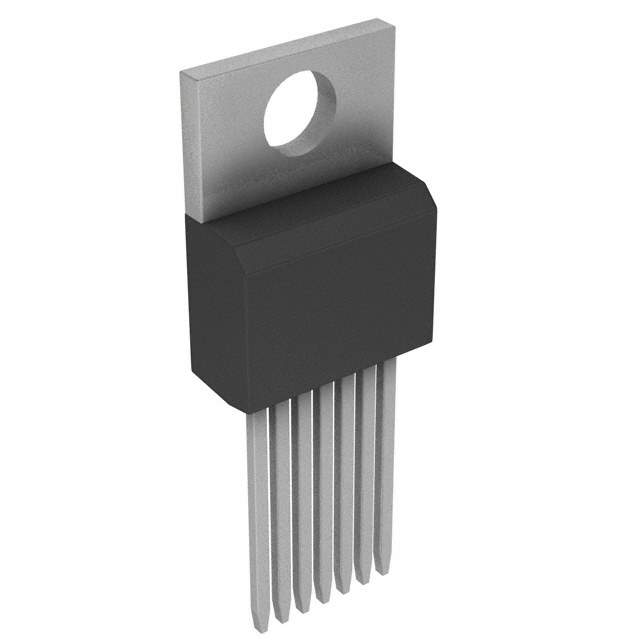

OPA548T-1 Real Image
Same model may have multiple batches, images only for reference.

OPA548T-1

Part No OPA548T-1
Manufacturer Texas Instruments
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP POWER 1MHZ TO220-7
Datasheet
OPA548T-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Amplifier Type Power
Number of Circuits 1
Slew Rate 10 V/μs
Gain Bandwidth Product (GBP) 1MHz
Current - Input Bias 100nA
Voltage - Input Offset 2mV
Operating Supply Current 17mA
Channel Output Current 5A
Supply Voltage - Operating 8 V to 60 V, ±4 V to 30 V
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Case / Package TO-220-7
Win Source Part Number 026156-OPA548T-1
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Sensing & Instrumentation, Signal Processing, Test & Measurement, Audio
Ultra Librarian 3D Model Ultra Librarian OPA548T-1 CAD Model

Description

The OPA548T-1 from Texas Instruments is a high-voltage, high-current operational amplifier that is designed to offer an excellent blend of precision, power, and simplicity.

  • Supply Range: From ±10V to ±30V
  • Output Currents: Up to 3A
  • Thermal Shutdown Feature: Yes
  • High Slew Rate: 10V/μs
  • Low Total Harmonic Distortion (THD): 0.02% @ 1kHz
  • User-Defined Current Limit: Yes
  • Package: Compact, thermally-enhanced 7-pin TO-220
  • Temperature Range: From -40°C to +85°C
