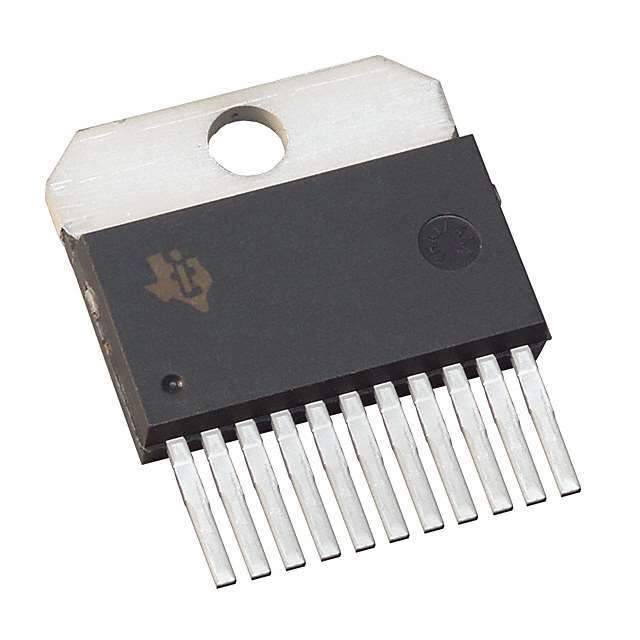

The OPA549MKVC from Texas Instruments is a high-voltage, high-current operational amplifier designed for a multitude of applications requiring a robust power output. This operational amplifier is well-suited for motor drives, audio systems, power supplies, and other applications that demand high performance and reliability.

Key Features

• High Output Current: Capable of delivering up to 8A of continuous output current, the OPA549MKVC is perfect for driving high-power loads.
• Wide Supply Range: It operates over a wide supply range of ±4V to ±30V, or 8V to 60V on a single supply, providing flexibility in various circuit configurations.
• Thermal Protection: The device includes a thermal shutdown feature, which protects it from overheating and potential damage by disabling the output when the junction temperature exceeds safe limits.
• Adjustable Current Limit: Users can set the output current limit to any value between the limit threshold and the maximum output current, which allows for precise control and protection of the load.

Performance Specifications

• Low Quiescent Current: The OPA549MKVC maintains efficiency with a low quiescent current, making it suitable for battery-powered and energy-sensitive applications.
• High Slew Rate: With a high slew rate, this operational amplifier is capable of handling rapid changes in input signals without significant distortion, ensuring clear and accurate signal amplification.
• Wide Bandwidth: It offers a wide bandwidth for a power amplifier, enabling it to amplify a broad range of frequencies without signal degradation.

Applications

The OPA549MKVC's robust design and versatile features make it an ideal choice for a wide array of applications, including:

• Power supply control circuits
• Motor control and servo systems
• Audio amplifiers for professional and consumer audio systems
• Transducer and sensor amplifiers
• Test and measurement equipment

With its combination of high power, precision, and protection features, the Texas Instruments OPA549MKVC operational amplifier is a reliable and efficient solution for demanding power amplification needs.
