Products specifications

Category Sensors, Transducers - Optical Sensors - Ambient Light, IR, UV Sensors
Mfr Texas Instruments
Package Tape & Reel
Product Status Active
Type Ambient
Wavelength 505nm
Proximity Detection No
Output Type I²C/SMBus
Voltage - Supply 1.6V ~ 3.6V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 6-UDFN Exposed Pad
Supplier Device Package 6-USON (2x2)
Base Product Number OPT3002
Standard Package 3,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.1050
Win Source Part Number 845969-OPT3002DNPR
Ultra Librarian 3D Model Ultra Librarian OPT3002DNPR CAD Model

Description

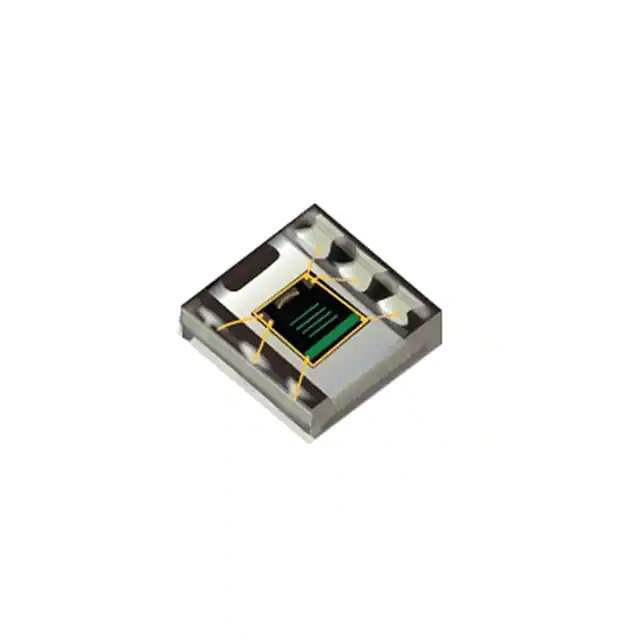

Introducing the OPT3002DNPR Light Sensor from Texas Instruments

The OPT3002DNPR is a state-of-the-art light sensor module designed and manufactured by Texas Instruments (TI), a leader in semiconductor solutions. This precision sensor is engineered for optimal performance in measuring light intensity with minimal power consumption, making it an ideal choice for a wide range of applications including consumer electronics, industrial systems, and portable devices.

The OPT3002DNPR operates over an extensive range of light intensities, from 0.01 lux to 83k lux, with an impressive signal-to-noise ratio. This allows for precise light measurement in environments from dark rooms to bright sunlight. The sensor's automatic full-scale setting feature adjusts the range dynamically, eliminating the need for manual range adjustments and facilitating ease of use in varying lighting conditions.

One of the key advantages of the OPT3002DNPR is its low power consumption. The device is designed to operate in a power-saving mode, which significantly extends battery life in portable applications. This is particularly beneficial for battery-powered devices where power efficiency is crucial, such as smartphones, tablets, and smartwatches.

The sensor's package is a compact, 6-pin ODFN (Optical Dual Flat No-lead) with dimensions of 2mm x 2mm x 0.65mm, which is suitable for space-constrained applications. Its small size does not compromise its performance, ensuring that it can be integrated into a variety of designs without any loss in functionality.

Integration with other systems is made simple with the OPT3002DNPR's I2C interface, which allows for easy communication with microcontrollers and other digital devices. Additionally, the sensor is equipped with an interrupt system that can notify the host microcontroller when the light level crosses a predefined threshold, enabling intelligent and responsive system behavior.

Overall, the Texas Instruments OPT3002DNPR light sensor is a versatile and reliable solution that combines high precision, low power consumption, and ease of integration. Its advanced features make it an excellent choice for developers and manufacturers seeking to enhance their products with accurate ambient light sensing capabilities.
