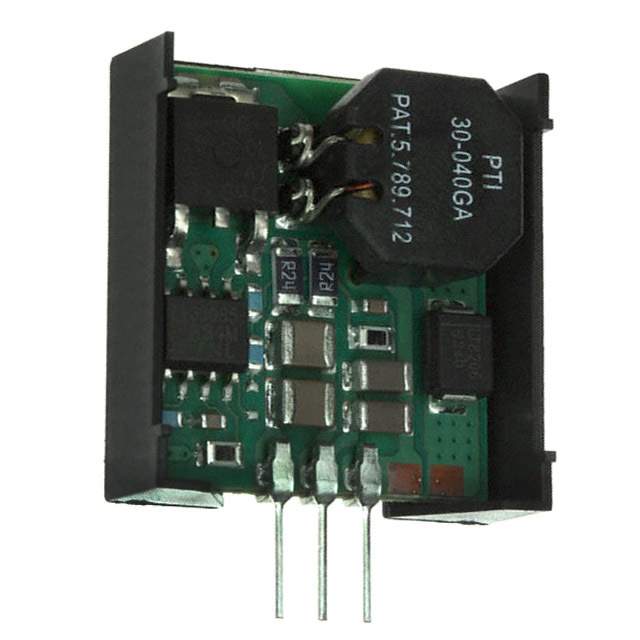

The Texas Instruments PT78NR105V is a high-performance, non-isolated power module designed to deliver robust and reliable power management solutions for a wide range of applications. This compact and efficient module is part of the PT78NR100 series, renowned for its ease of use and integration into various electronic systems.

Key Features

• Output Voltage: The PT78NR105V provides a fixed output voltage of 5V, which is ideal for powering standard digital and analog circuits.
• Output Current: This power module can deliver up to 1.5A of continuous output current, making it suitable for moderate power demands.
• Wide Input Voltage Range: It operates over a wide input voltage range from 7V to 36V, accommodating various supply levels and ensuring versatility in different application scenarios.
• High Efficiency: With its high-efficiency design, the PT78NR105V minimizes power loss and heat generation, thereby enhancing system reliability and performance.
• Compact Size: The module's small footprint allows for easy integration into space-constrained designs without compromising on power delivery.
• Thermal Protection: It includes built-in thermal protection features that prevent damage from overheating, thus safeguarding the module and connected components.

Applications

The PT78NR105V is suitable for a variety of applications, including but not limited to:

• Telecommunications equipment
• Industrial control systems
• Networking hardware
• Computer peripherals

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability, and the PT78NR105V is no exception. It is designed to meet the stringent requirements of the industry, ensuring long-term stability and performance. With its robust design and proven manufacturing processes, this power module is an excellent choice for designers looking for a dependable power solution.

Conclusion

In summary, the Texas Instruments PT78NR105V power module is a versatile and efficient solution for a wide array of applications requiring a stable 5V supply. Its combination of features, including a wide input voltage range, high efficiency, and compact size, make it an attractive option for system designers.
