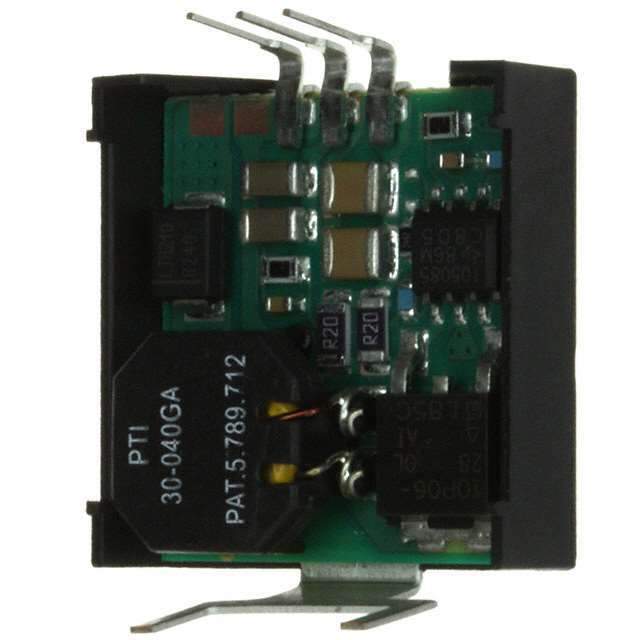

Product Overview: PT78NR152H

The PT78NR152H is a high-performance, integrated switching regulator module developed by Texas Instruments, a leader in semiconductor solutions. This innovative product is designed to offer a compact, efficient, and reliable power management solution for a variety of applications.

Key Features

• Output Voltage: The PT78NR152H provides a fixed output voltage of 1.5V, which is suitable for powering low-voltage digital circuits and microprocessors.
• Input Voltage Range: It operates over a wide input voltage range from 7V to 36V, making it versatile for use in various systems with different power supply requirements.
• Output Current: The module is capable of delivering up to 2A of output current, ensuring sufficient power for demanding applications.
• High Efficiency: The regulator's high efficiency minimizes heat generation, thereby reducing the need for additional heat sinking and allowing for a more compact system design.
• Easy Integration: With its SIP (Single In-line Package) form factor, the PT78NR152H can be easily integrated into a wide range of electronic assemblies.
• Thermal Protection: The built-in thermal protection feature helps to prevent the module from overheating, enhancing its reliability and lifespan.
• Overcurrent Protection: The device includes overcurrent protection to safeguard against excessive current draw that could damage the module or the powered device.

Applications

The PT78NR152H is ideally suited for use in a variety of applications, including:

• Telecommunications equipment
• Industrial control systems
• Portable devices
• Networking hardware
• Computer peripherals

Conclusion

With its robust feature set and ease of use, the PT78NR152H from Texas Instruments is an excellent choice for designers looking for a reliable power solution. Its wide input voltage range, substantial output current capability, and protective features make it a versatile component for powering sophisticated electronic systems. Whether you're developing products for industrial, telecommunications, or computing applications, the PT78NR152H offers the performance and reliability needed to meet your power management needs.
