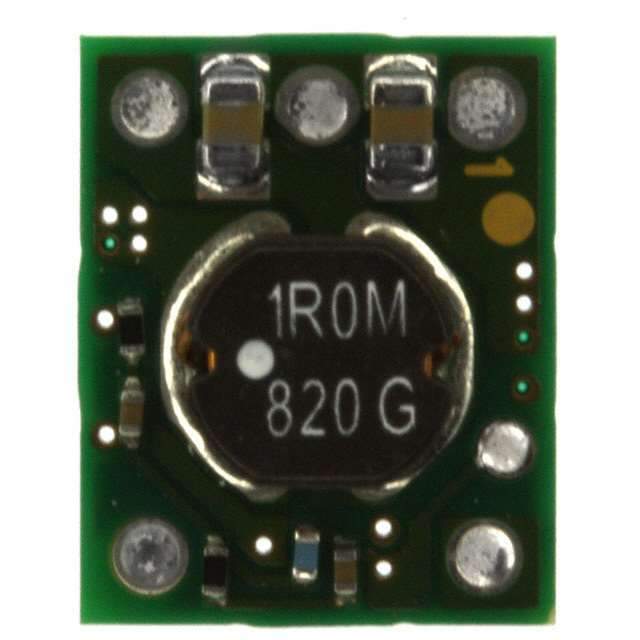

PTH04070WAH

Name: PTH04070WAH
Brand: Texas Instruments
SKU: 283801
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PTH04070WAH
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP .9-3.6V 3A HORZ T/H / Module DC-DC 3.3V/5VIN 1-OUT 0.9V to 3.6V 3A 5-Pin DIP Module Tray
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Texas Instruments
Standard Package	90
Category	Power Supplies - Board Mount
Family	DC DC Converters
Series	PTH04070W
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	3V
Voltage - Input (Max)	5.5V
Voltage - Output 1	0.9 ~ 3.6 V
Current - Output (Max)	3A
Applications	ITE (Commercial)
Features	With UVLO
Mounting Style	Through Hole
Package	5-DIP Module
Size / Dimension	0.50" L x 0.40" W x 0.31" H (12.7mm x 10.2mm x 7.9mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	92%
Power (Watts) - Max	10.8W
Catalog	PTH04070W Series
Win Source Part Number	086466-PTH04070WAH
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Family Name	PTH04070
Introduction Date	December 01, 2005
ECCN	EAR99
Country of Origin	United States of America
Halogen Free	Compliant
Estimated EOL Date	2031
Ultra Librarian 3D Model	Ultra Librarian PTH04070WAH CAD Model

Description

The Texas Instruments PTH04070WAH is a highly sophisticated, high-performance, non-isolated power module that is part of the PTH series.

Rated Current: 15-A
Output Voltage Range: 0.9 to 5.5V
Input Voltage Range: 5V to 12V
Maximum Output Current: 15A
Auto-Track Sequencing: Yes
Efficiency: Up to 96%
Over-Temperature Protection: Yes
Under-Voltage Protection: Yes
Output Over-Current Protection: Yes
Input Under-Voltage Lockout: Yes
