Microchip Technology's PIC16F505-I/MG Microcontroller

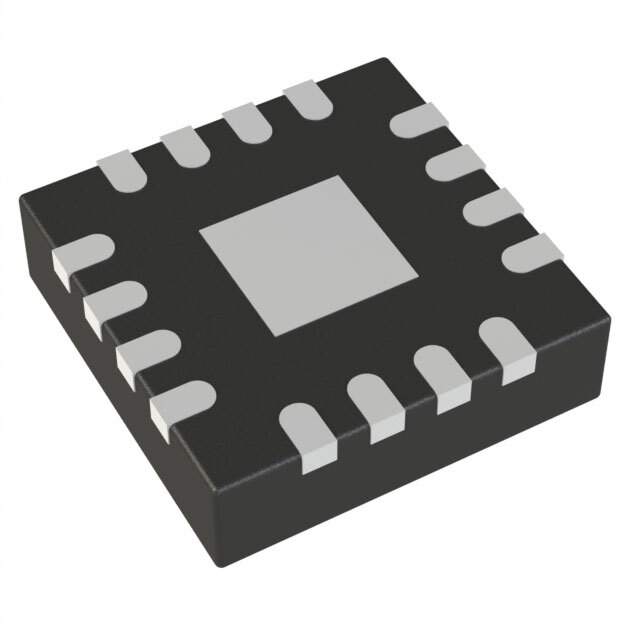

The PIC16F505-I/MG is a high-performance, 8-bit microcontroller from Microchip Technology, designed to offer a cost-effective solution for a wide range of embedded applications. This versatile microcontroller is housed in a compact 14-pin QFN package, making it ideal for space-constrained applications while providing robust functionality and reliability.

Featuring a RISC architecture, the PIC16F505-I/MG provides a fast and efficient processing platform with a maximum CPU speed of 20 MHz. It is equipped with 1.5 KB of flash program memory, which allows for flexible program storage, and 72 bytes of data RAM for temporary data storage during operation. The device also includes 128 bytes of EEPROM, offering non-volatile memory for critical data that must be preserved between power cycles.

The microcontroller's I/O capabilities include 12 general-purpose I/O pins that can be configured for a variety of functions, allowing designers to interface with sensors, actuators, and other peripherals. The PIC16F505-I/MG also features an integrated analog comparator, which can be used for simple analog signal processing tasks without the need for external components.

For timing and control, the device includes an 8-bit timer and a watchdog timer, which are essential for managing time-sensitive operations and ensuring system reliability through reset functions in the event of a software anomaly. The microcontroller operates on a wide voltage range of 2.0V to 5.5V, making it suitable for battery-operated and low-power applications.

Programmability is a key feature of the PIC16F505-I/MG, with support for in-circuit serial programming (ICSP) for easy firmware updates and development. Microchip's MPLAB IDE and a variety of development tools are compatible with the PIC16F505-I/MG, providing a comprehensive ecosystem for developers to create and debug their applications.

In summary, the PIC16F505-I/MG microcontroller is a versatile, powerful, and cost-effective solution for a multitude of embedded control applications. Its combination of memory, I/O, and on-chip features, along with the support of Microchip's development tools, makes it an excellent choice for product designers looking to optimize performance and minimize space.
