ON Semiconductor LM2931AZ5 Low Dropout Voltage Regulator

The LM2931AZ5 from ON Semiconductor is a robust low dropout voltage regulator designed to provide a stable power supply even under challenging conditions. This regulator is specifically engineered to maintain stability and performance when subjected to extreme variations in input voltage, load conditions, and environmental temperatures. It is an ideal choice for automotive, industrial, and battery-powered applications.

The device operates with a nominal input voltage range from 4.5V to 40V, making it suitable for a wide array of power sources. It provides a fixed output voltage of 5V, which is a common requirement for many electronic circuits, with an output current capability of up to 100mA. The LM2931AZ5's low dropout voltage ensures efficient operation, even when the input voltage is very close to the output voltage, enhancing battery life in portable applications.

One of the key features of the LM2931AZ5 is its exceptional resilience to input supply transients, which is a critical attribute for automotive power supplies that must cope with load dump and cold-crank conditions. The device is also equipped with a range of protective features, including short-circuit protection and thermal shutdown, which safeguard the regulator and the downstream circuitry from potential damage due to overcurrent or excessive temperature conditions.

In addition to its protective functions, the LM2931AZ5 offers a low quiescent current, which is particularly beneficial for battery-powered devices where power conservation is paramount. The regulator's ability to maintain a low quiescent current even in dropout mode further extends battery life.

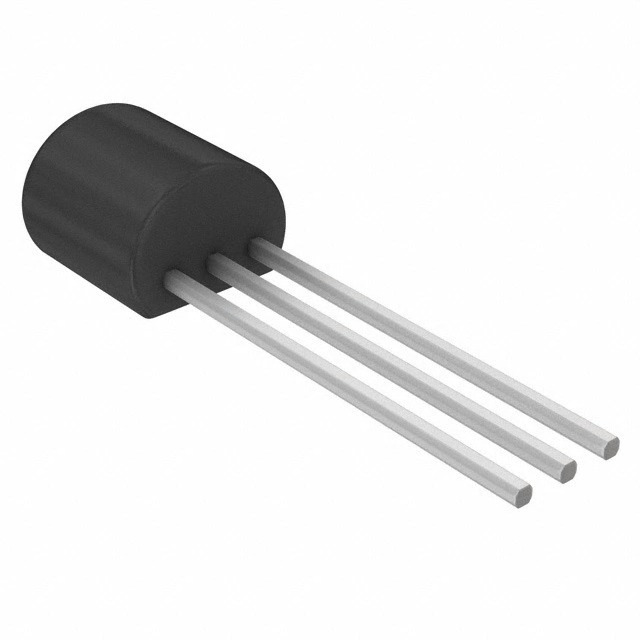

The LM2931AZ5 is available in a TO-92 package, which is widely used for through-hole mounting. This package type allows for easy integration into a variety of circuit boards and is conducive to prototyping and small-scale production runs.

Overall, the LM2931AZ5 low dropout voltage regulator from ON Semiconductor is a reliable and efficient solution for designers who require a stable voltage source that can withstand demanding conditions while offering a suite of protection features to ensure the longevity and reliability of their electronic products.
