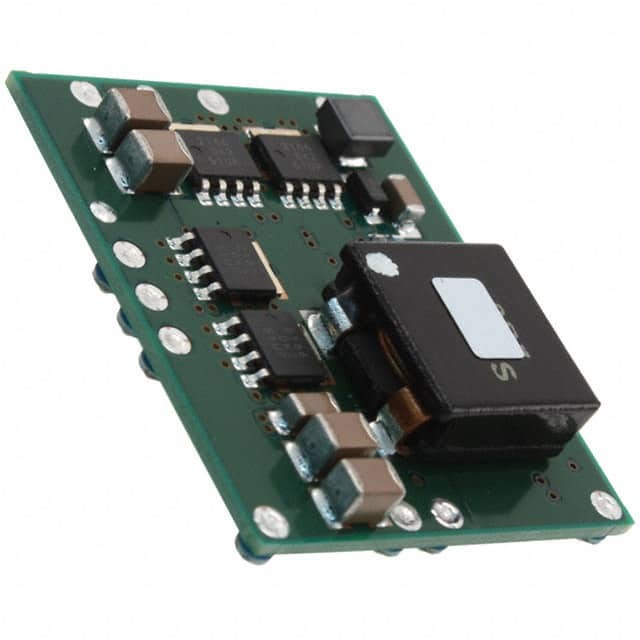

The PTH05030WAZT is a high-performance, non-isolated module from Texas Instruments, renowned for its exceptional efficiency and flexibility. This power module is part of the PTH series, designed to meet the needs of a broad range of applications requiring a regulated power supply.

Key Features

• Wide Input Voltage Range: The PTH05030WAZT operates with an input voltage range of 4.5V to 5.5V, making it ideal for applications that require a 5V input rail.
• Adjustable Output Voltage: Users can adjust the output voltage from 0.8V to 3.6V, providing versatility for powering various devices that require different voltage levels.
• High Output Current: Capable of delivering up to 6A of output current, this module can support high-power applications.
• Efficiency: With an efficiency rating of up to 95%, the PTH05030WAZT ensures minimal power loss and heat generation.
• Thermal Performance: The module is equipped with an integrated heat sink, which enhances its thermal performance and reliability.
• Small Footprint: The compact size of the module (15.24mm x 9.4mm x 5.1mm) allows for easy integration into space-constrained applications.
• Protection Features: It includes overcurrent and over-temperature protection, ensuring the safety and longevity of both the module and the application it powers.

Applications

The PTH05030WAZT is suitable for a wide array of applications, including but not limited to:

• Telecommunications equipment
• Data acquisition systems
• Embedded computing
• Networking hardware
• Industrial controls

Conclusion

With its robust design, high efficiency, and flexible output voltage range, the PTH05030WAZT from Texas Instruments stands out as a versatile power solution. Its ability to deliver high current with thermal efficiency makes it a reliable choice for engineers and designers looking to optimize their power systems in various applications.
