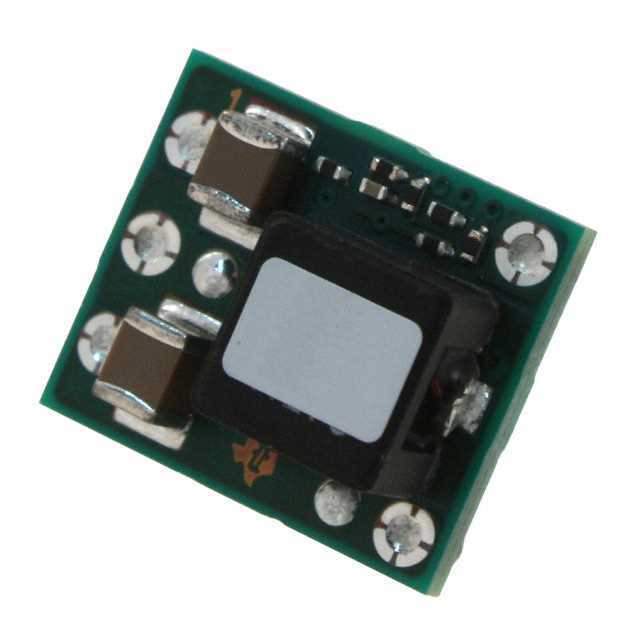

PTH08080WAS

Name: PTH08080WAS
Brand: Texas Instruments
SKU: 283837
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PTH08080WAS
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP .9-5.5V 2.25A SMD
Datasheet	PTH08080WAS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Texas Instruments
Series	PTH08080W
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	18V
Voltage - Output 1	0.9 ~ 5.5 V
Current - Output (Max)	2.25A
Applications	ITE (Commercial)
Mounting Style	SMD/SMT
Package	5-SMD Module
Size / Dimension	0.60" L x 0.50" W x 0.35" H (15.2mm x 12.7mm x 8.9mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	93.5%
Power (Watts) - Max	12.4W
Win Source Part Number	026950-PTH08080WAS
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PTH08080WAS CAD Model

Alternative Products

Description

The PTH08080WAS is a high-quality, high-performance, non-isolated power module from Texas Instruments.

Input Voltage Range: 4.5V to 14V
Adjustable Output Voltage: 0.9V to 5.5V
Maximum Output Current: 2.25A
Efficiency: Up to 96%
Auto-Track Sequencing: Yes
Size: 10.4mm x 9.1mm x 2.6mm
Under-Voltage Lockout: Yes
Output Current Limit: Yes
Over-Temperature Shutdown: Yes
RoHS Compliant: Yes
