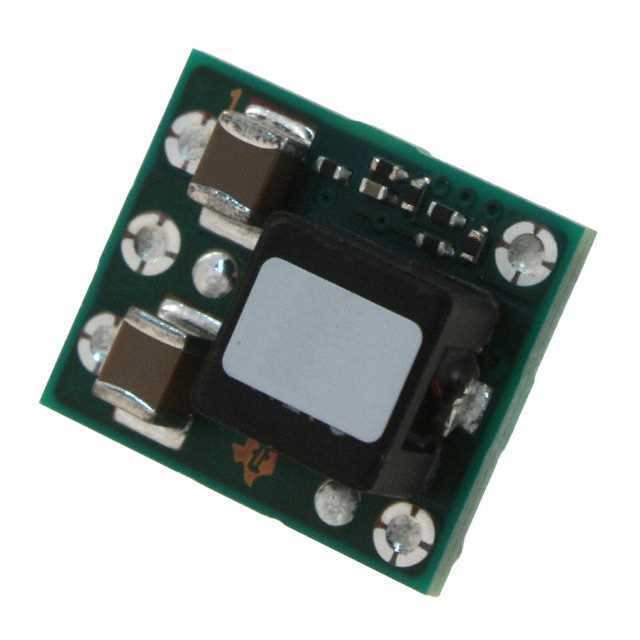

Product Overview: Texas Instruments PTH08080WAZT

The PTH08080WAZT is a highly efficient, non-isolated power module from Texas Instruments (TI), designed to meet the needs of a wide variety of applications requiring a regulated power supply. This power module is part of TI's extensive range of power management solutions, and it stands out for its ease of use, performance, and flexibility.

Key Features

• Adjustable Output Voltage: The PTH08080WAZT offers an adjustable output voltage range from 2.25V to 5.5V, allowing for customization to specific requirements.
• High Efficiency: With an efficiency of up to 95%, this power module ensures minimal power loss and is ideal for energy-sensitive applications.
• Wide Input Voltage Range: It operates over a wide input voltage range of 4.5V to 18V, making it versatile for various input sources.
• High Output Current: The device can deliver up to 2.25A of output current, suitable for powering a range of components.
• Small Footprint: The compact size of the module, with a small footprint of 10.16mm x 11.43mm, is perfect for space-constrained applications.
• Thermal Performance: Enhanced thermal performance is achieved through an integrated copper baseplate, which aids in heat dissipation.
• Easy Implementation: The PTH08080WAZT requires minimal external components for operation, simplifying design and reducing time to market.

Applications

The versatile nature of the PTH08080WAZT makes it suitable for a broad range of applications, including but not limited to:

• Telecommunications equipment
• Industrial systems
• Networking equipment
• Portable devices
• Point-of-load applications

Quality and Reliability

As with all Texas Instruments products, the PTH08080WAZT is manufactured to high standards, ensuring reliability and performance in the field. TI's commitment to quality means that customers can rely on this power module to deliver consistent results over its operational lifespan.

For designers and engineers seeking a robust, efficient, and flexible power solution, the PTH08080WAZT from Texas Instruments represents a premier choice that combines innovative technology with practical design considerations.
