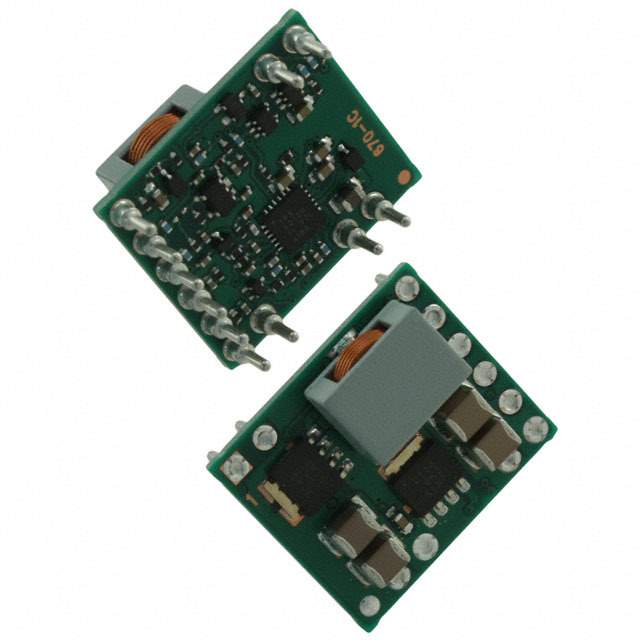

Same model may have multiple batches, images only for reference.

PTH08T220WAH

Name: PTH08T220WAH
Brand: Texas Instruments
SKU: 283843
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PTH08T220WAH
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP 16A HORZ T/H 11-DIP
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Texas Instruments
Standard Package	42
Category	Power Supplies - Board Mount
Family	DC DC Converters
Series	PTH08T220W
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	14V
Voltage - Output 1	0.69 ~ 5.5 V
Current - Output (Max)	16A
Applications	ITE (Commercial)
Mounting Style	Through Hole
Package	11-DIP Module
Size / Dimension	0.87" L x 0.75" W x 0.34" H (22.1mm x 19.1mm x 8.6mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	95%
Power (Watts) - Max	88W
Catalog	PTH08T220W/221W Series
Win Source Part Number	062182-PTH08T220WAH
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PTH08T220WAH CAD Model

Alternative Products

Description

The PTH08T220WAH from Texas Instruments is a high-performance, non-isolated power module that offers a wide range of adjustable output voltage.

Input Voltage Range: 4.5V to 14V
Output Voltage: Adjustable from 0.69V to 5.5V
Output Current Capacity: Up to 10A
Efficiency: Up to 95%
Auto-Track Sequencing: Yes
Over-Temperature Protection: Yes
Under-Voltage Lockout: Yes
Package: Compact, surface-mount
RoHS Compliant: Yes
