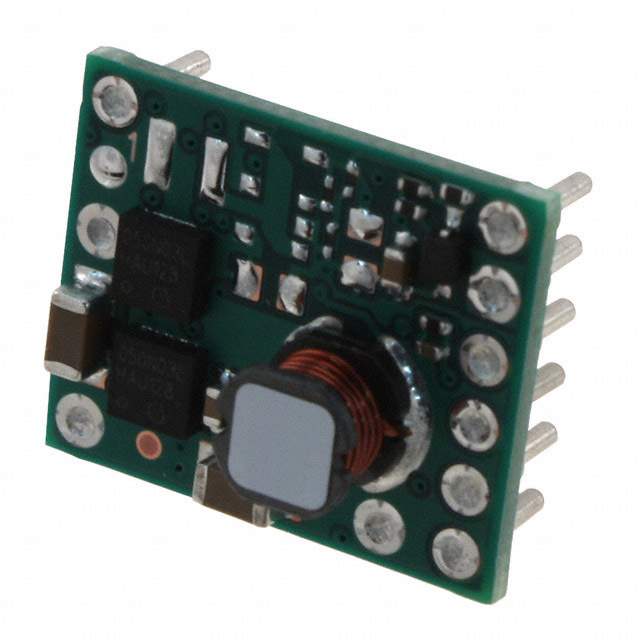

Same model may have multiple batches, images only for reference.

PTH08T230WAD

Name: PTH08T230WAD
Brand: Texas Instruments
SKU: 283846
Availability: InStock
Rating: 4.91 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PTH08T230WAD
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP 6A ADJ HZ T/H 10DIP
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Texas Instruments
Standard Package	36
Category	Power Supplies - Board Mount
Family	DC DC Converters
Series	PTH08T230W
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	14V
Voltage - Output 1	0.69 ~ 5.5 V
Current - Output (Max)	6A
Applications	ITE (Commercial)
Mounting Style	Through Hole
Package	10-DIP Module
Size / Dimension	0.75" L x 0.62" W x 0.34" H (19.1mm x 15.7mm x 8.6mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	95%
Power (Watts) - Max	33W
Catalog	PTH08T230W Series
Win Source Part Number	085536-PTH08T230WAD
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	PTH08T230
Introduction Date	January 06, 2006
ECCN	EAR99
Country of Origin	United States of America
Halogen Free	Not Compliant
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian PTH08T230WAD CAD Model

Alternative Products

Description

The PTH08T230WAD is a high-performance, 30-A rated, non-isolated power module from Texas Instruments.

Input Voltage Range: 4.5V to 14V
Output Voltage Range: Adjustable, 0.69V to 5.5V
Auto-Track Sequencing: Yes
Adjustable Output Voltage: Yes
Differential Remote Sense: Yes
Over-Temperature Protection: Yes
Output Over-Current Protection: Yes
Under-Voltage Lockout: Yes
Power Density: High
Efficiency: Up to 95%
Tunable Loop™ Technology: Yes
