Product Overview: PTH08T240WAS from Texas Instruments

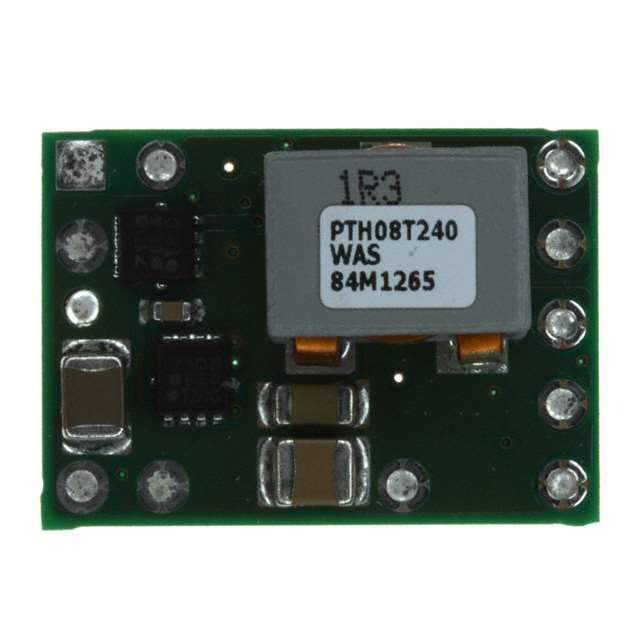

The PTH08T240WAS is a high-performance, adjustable non-isolated module with a single output integrated switching regulator (ISR) from Texas Instruments. This innovative power solution is designed to meet the needs of a wide range of applications, particularly those requiring a compact, high-efficiency power module that can deliver a substantial amount of current.

Key Features

• Input Voltage Range: The PTH08T240WAS operates over a wide input voltage range of 4.5V to 14V, making it versatile for various systems and ensuring compatibility with different power sources.
• Adjustable Output Voltage: Its output voltage can be adjusted from 0.69V to 5.5V, allowing for a high degree of flexibility to power a diverse array of components.
• High Efficiency: With an efficiency of up to 96%, this power module ensures minimal power loss, making it ideal for energy-sensitive applications.
• High Output Current: It is capable of delivering up to 10A of output current, providing ample power for demanding electronic circuits.
• Thermal Performance: The module is equipped with an integrated heat sink and excellent thermal performance, ensuring reliability even under high power operation.
• Power Good Output: This feature provides a power good signal when the output voltage is within regulation, which is useful for sequence tracking in complex power systems.
• Pre-Bias Startup: It supports pre-bias startup, ensuring that the output voltage ramps up smoothly from an existing voltage.

Applications

The PTH08T240WAS is suitable for a wide range of applications, including but not limited to:

• Telecommunications equipment
• Computing and storage systems
• Industrial controls
• Networking equipment
• Point-of-load power architectures

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability, and the PTH08T240WAS is no exception. It is designed to meet the stringent requirements of the most demanding applications, ensuring long-term performance and stability.
