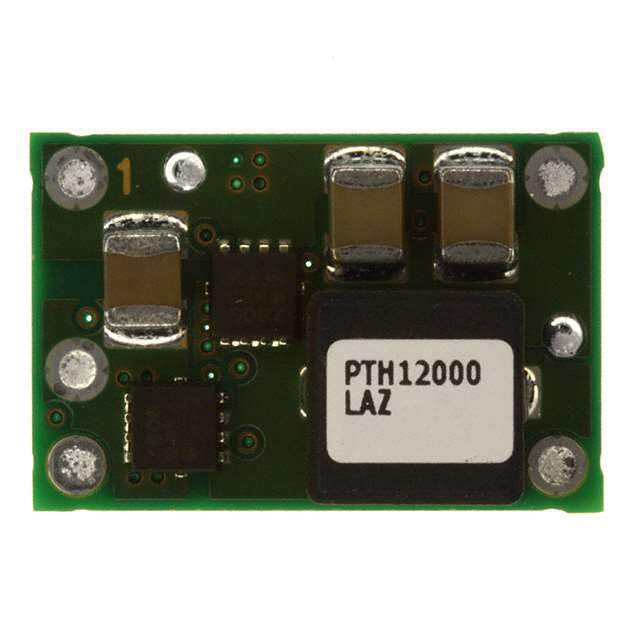

PTH12000LAZ

Name: PTH12000LAZ
Brand: Texas Instruments
SKU: 283861
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PTH12000LAZ
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP .8-1.8V 6A SMD
Datasheet	PTH12000LAZ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Texas Instruments
Series	PTH12000
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	0.8 ~ 1.8 V
Current - Output (Max)	6A
Applications	ITE (Commercial)
Features	OCP, UVLO
Mounting Style	SMD/SMT
Package	5-SMD Module
Size / Dimension	0.75" L x 0.50" W x 0.36" H (19.1mm x 12.7mm x 9.1mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	87%
Power (Watts) - Max	10.8W
Win Source Part Number	026954-PTH12000LAZ
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian PTH12000LAZ CAD Model

Alternative Products

Description

The PTH12000LAZ is a high-performance, low profile, non-isolated power module developed by Texas Instruments, a globally recognized leader in the semiconductor industry.

Input Voltage Range: 10.8V to 13.2V
Output Voltage: 0.8V to 5.5V (adjustable)
Output Current: Up to 12A
Feature: Auto-Track sequencing
Profile: Low (8.5mm)
Footprint: Small (25.4mm x 11.4mm)
Protection: Over-current and over-temperature protection
External Components: Few required
Heat Sink: Not required
