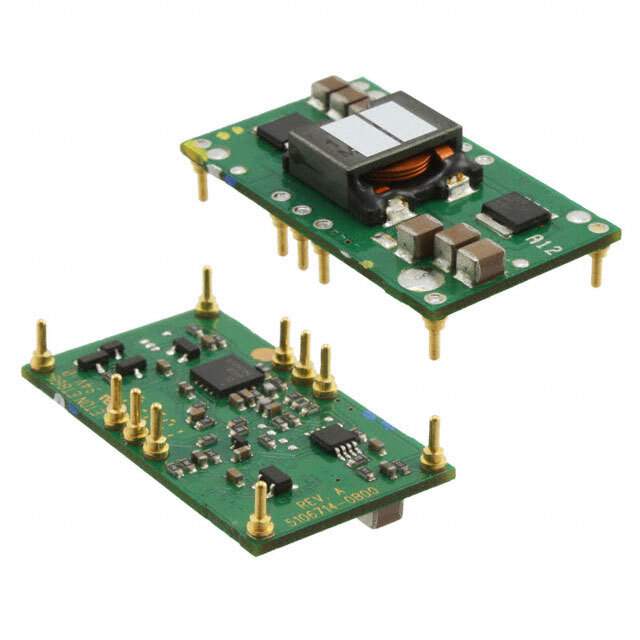

PTH12020LAH Real Image
Same model may have multiple batches, images only for reference.

PTH12020LAH

Part No PTH12020LAH
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description MODULE PIP .8-1.8V 18A T/H 10DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Texas Instruments
Standard Package 20
Category Power Supplies - Board Mount
Family DC DC Converters
Series PTH12020
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 0.8 ~ 1.8 V
Current - Output (Max) 18A
Applications ITE (Commercial)
Mounting Style Through Hole
Package 10-DIP Module
Size / Dimension 1.50" L x 0.87" W x 0.35" H (38.1mm x 22.1mm x 8.9mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 89%
Power (Watts) - Max 32.4W
Catalog PTH12020 Series
Win Source Part Number 062185-PTH12020LAH
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTH12020LAH CAD Model

Description

The PTH12020LAH is an advanced, high-performance, non-isolated power module developed by Texas Instruments, a renowned global semiconductor design and manufacturing company.

  • Rating: 12A
  • Input: 12Vin
  • Type: Single output, non-isolated
  • Feature: Auto-Track™ sequencing technology
  • Input Voltage Range: 10.8V to 13.2V
  • Output Voltage Range: 0.8V to 5.5V (adjustable)
  • Efficiency: Up to 95%
  • Protection: Over-temperature and over-current protection
  • Package: Compact, surface-mount
  • Size: 1.0 x 0.5 x 0.22 inches
