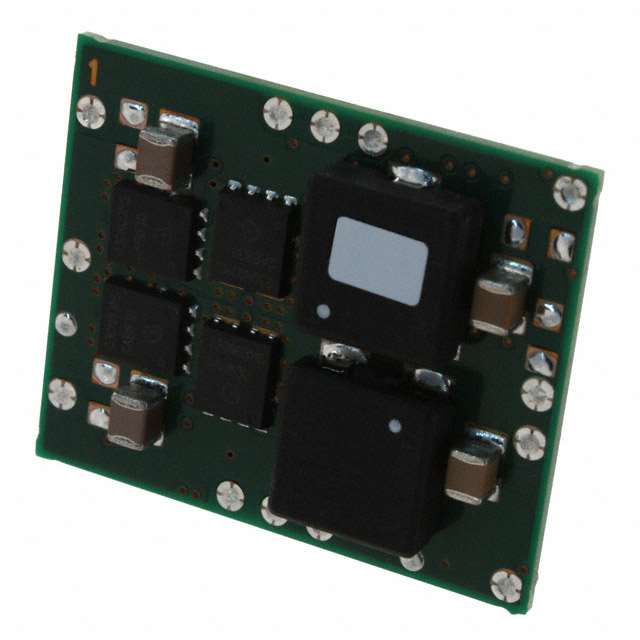

The PTH12030LAZ is a high-performance, adjustable non-isolated power module from Texas Instruments. This powerful component is a part of TI's extensive range of power management devices, designed to cater to a variety of applications requiring efficient power distribution and conversion.

Key Features

• Output Voltage: The PTH12030LAZ offers an adjustable output voltage range from 0.9V to 5.5V, making it versatile for different circuit requirements.
• High Efficiency: With an efficiency of up to 95%, this module ensures minimal power loss during operation, which is crucial for maintaining thermal performance and reliability.
• Output Current: It can deliver up to 30A of output current, catering to applications with high power demands.
• Input Voltage Range: The device accepts an input voltage range of 10.8V to 13.2V, suitable for a variety of industrial and commercial power systems.
• Thermal Performance: The module is designed with an excellent thermal dissipation characteristic, thanks to its integrated heat sink and advanced packaging technology.
• Small Footprint: The PTH12030LAZ comes in a compact form factor, which is ideal for space-constrained applications.

Applications

The PTH12030LAZ is highly suitable for a range of applications, including:

• Telecommunications equipment
• Computing systems
• Networking hardware
• Industrial control systems
• Test and measurement devices

Additional Benefits

Along with its core features, the PTH12030LAZ module offers several additional benefits:

• Pre-Bias Start-Up: The module can handle pre-biased loads, which is an essential feature for systems that require a sequenced power-up.
• Remote On/Off Control: This allows for better power management by enabling the user to turn the device on or off remotely.
• Under-Voltage Lockout (UVLO): This safety feature ensures that the module operates only when the input voltage is within a safe range.
• Over-Temperature Protection: The device includes a thermal shutdown mechanism to protect against excessive temperature rise.

With its robust design and comprehensive feature set, the PTH12030LAZ from Texas Instruments stands out as a reliable and efficient solution for power management in a wide array of electronic systems.
